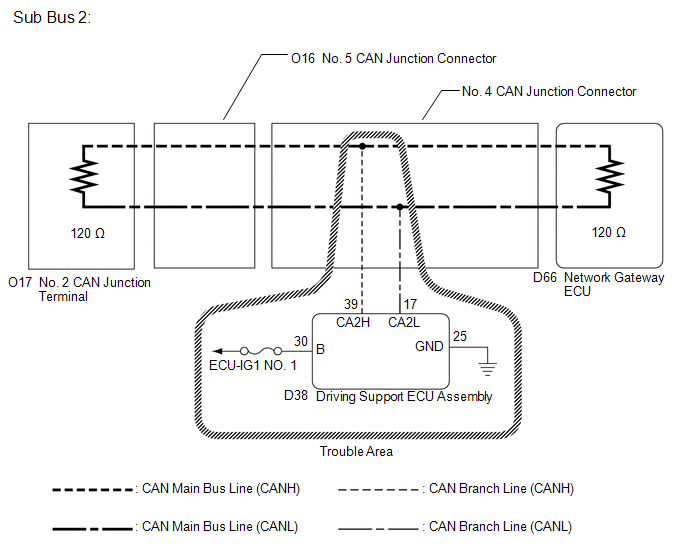

DTC U0104: Lost Communication with Driving Support ECU [10/2014 - 10/2015]: Wiring Diagram

GTY369987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
