Installation [10/2014 - ]: Procedure
- INSTALL TIE ROD ASSEMBLY LH
- INSTALL TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
- INSTALL STEERING LINK ASSEMBLY
- Install the steering link assembly with the 2 bolts and 2 nuts.
Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)
NOTE:- Because the nuts have their own stoppers, do not turn the nuts. Tighten the bolts with the nuts secured.
- Make sure to tighten the bolts starting from the pinion shaft side.
- Install the steering link assembly with the 2 bolts and 2 nuts.
- INSTALL FRONT STABILIZER BAR
Refer to PROCEDURE - Step 2
- INSTALL FRONT NO. 1 STABILIZER BRACKET LH
Refer to PROCEDURE - Step 3
- INSTALL FRONT NO. 1 STABILIZER BRACKET RH
HINT:
Perform the same procedure as for the LH side.
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE (When Not Using the Engine Support Bridge)
(Refer to PROCEDURE - Step 15 )
- INSTALL FRONT FRAME ASSEMBLY (When Using the Engine Support Bridge)
(Refer to PROCEDURE - Step 14 )
- CONNECT TIE ROD ASSEMBLY LH
- Connect the tie rod assembly LH to the steering knuckle with the nut.
Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
- Install a new cotter pin.NOTE:
Further tighten the nut up to 60° if the holes for the cotter pin are not aligned.
- Connect the tie rod assembly LH to the steering knuckle with the nut.
- CONNECT TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.

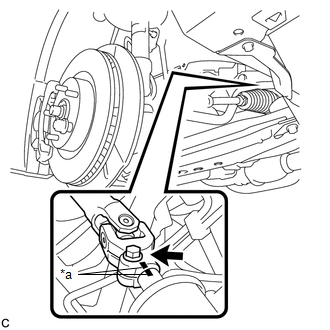

- CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
- INSTALL FRONT WHEELS
Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)
- INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
(Refer to ADJUSTMENT [10/2014 - 10/2015] and ADJUSTMENT [10/2015 - ] )
- INSPECT STEERING WHEEL CENTER POINT
