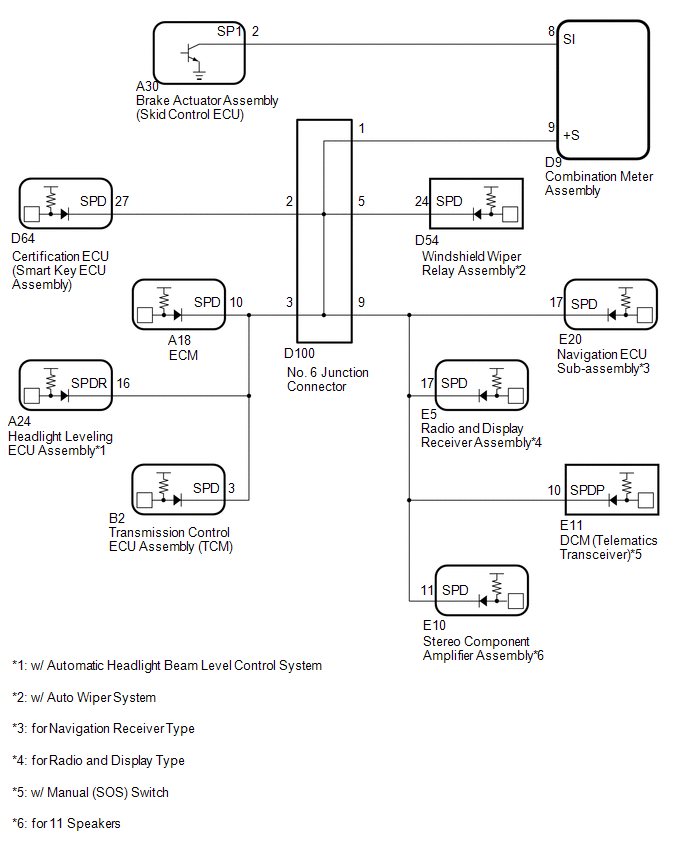

Speed Signal Circuit [10/2014 - ]: Wiring Diagram

GTY553060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
