Installation [10/2014 - ]: Procedure

  1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
    1. Connect a new washer nozzle sub-assembly to the washer hose.

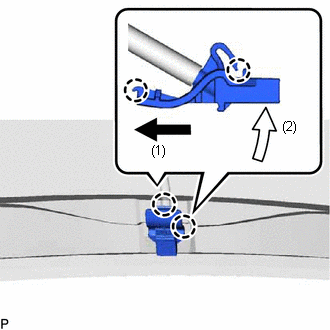

    2. Engage the 2 claws to install the washer nozzle sub-assembly as shown in the illustration.
      GTY546015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    See step  1

  3. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    See step  2
