Low Beam Headlight Circuit [10/2015 - ]: Wiring Diagram

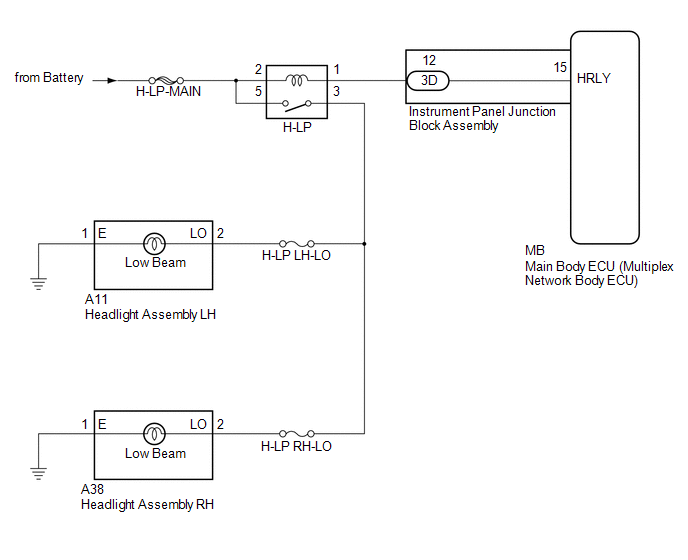

  1. for Halogen Headlight:
    GTY543469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for HID Headlight:
    GTY596155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

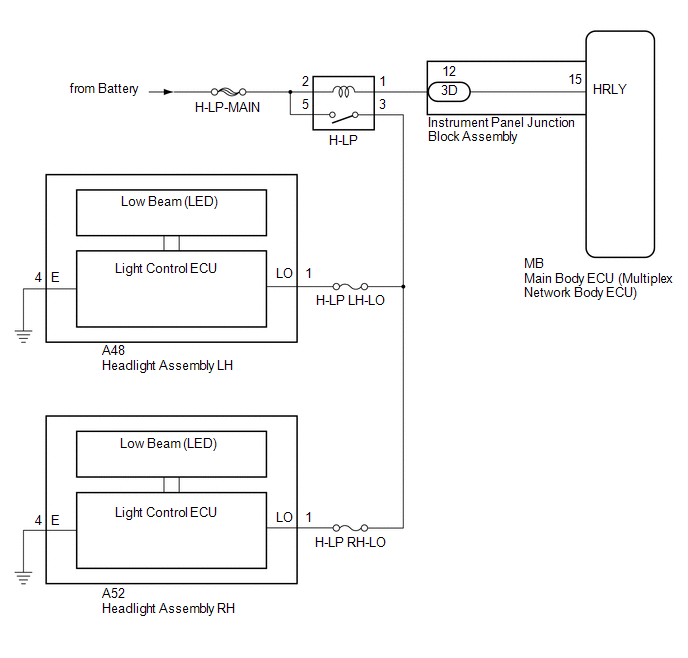

  3. for LED Headlight:
    GTY596153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
