High Beam Headlight Circuit [10/2015 - ]: Wiring Diagram

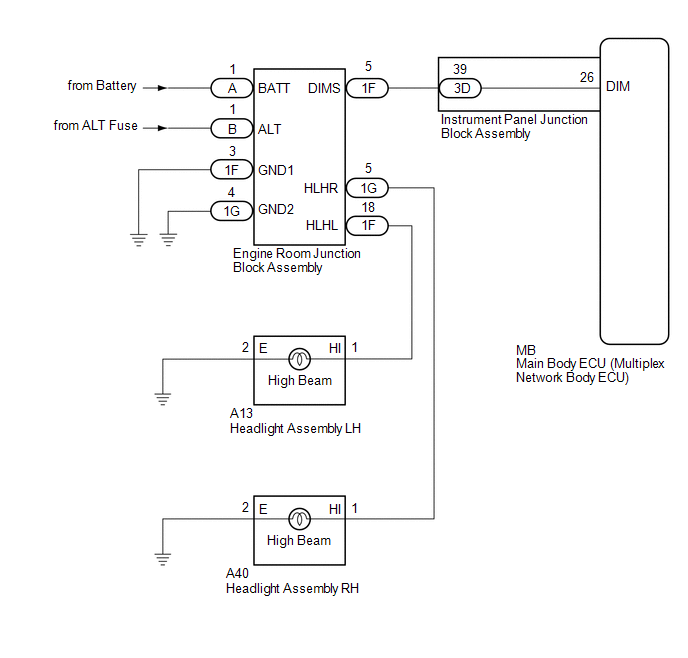

  1. for Halogen Headlight or HID Headlight:
    GTY598027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

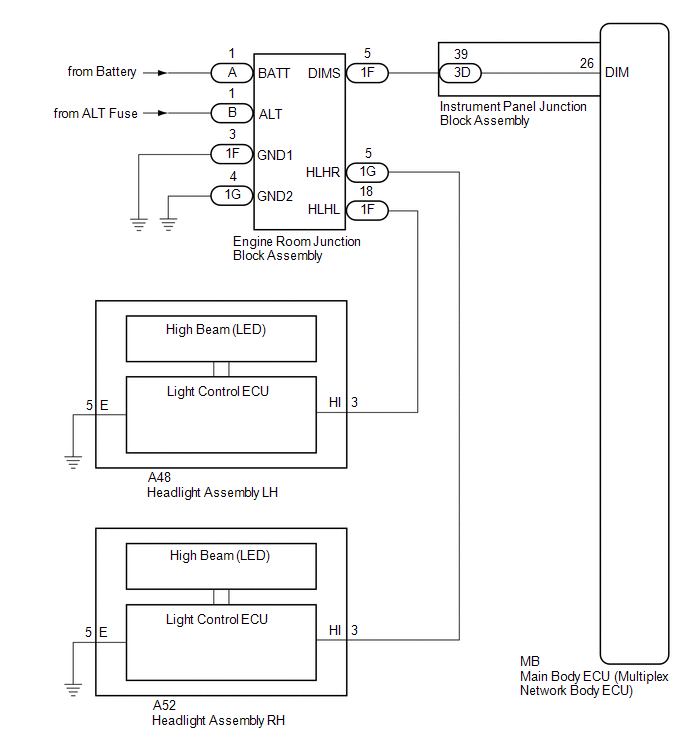

  2. for LED Headlight:
    GTY576782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
