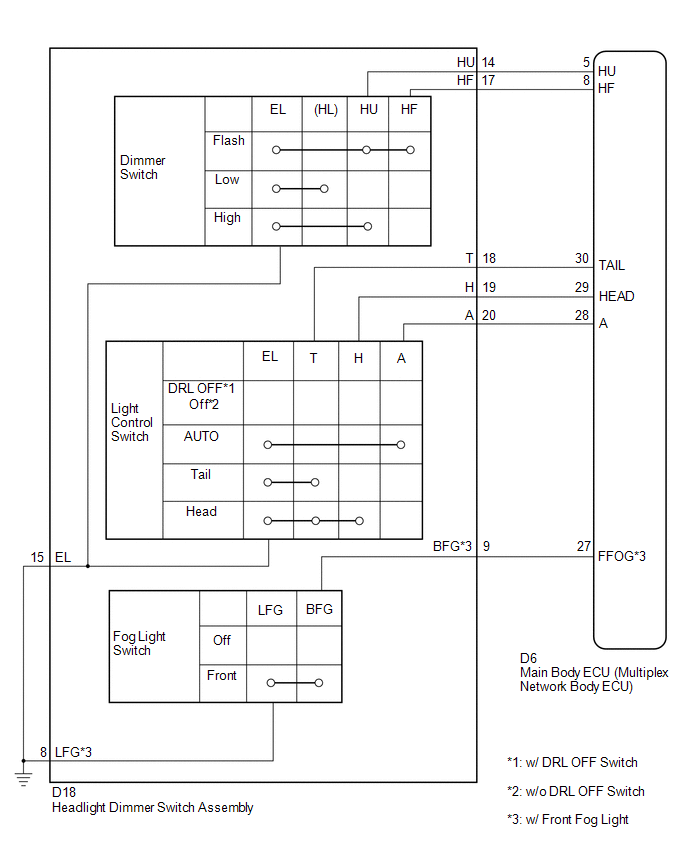

Headlight Dimmer Switch Circuit [10/2014 - 10/2015]: Wiring Diagram

GTY366953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
