Daytime Running Light Relay Circuit [10/2015 - ]: Wiring Diagram

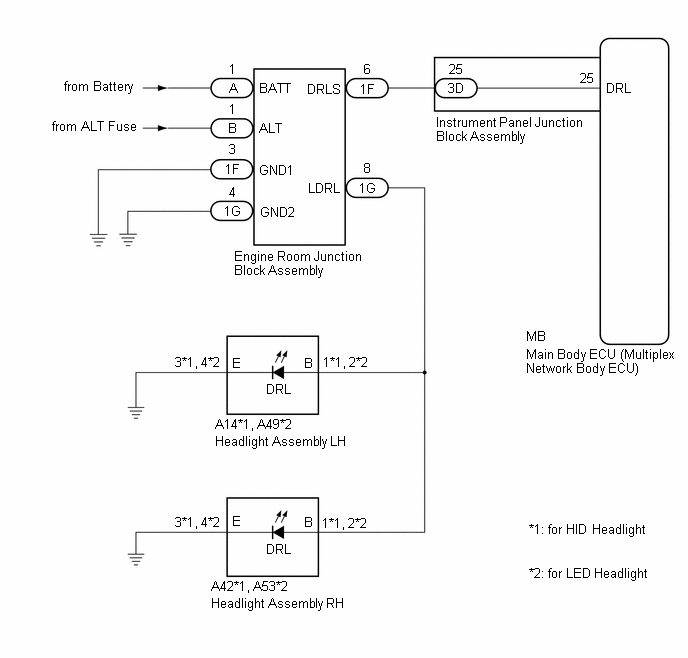

  1. for HID Headlight or LED Headlight:
    GTY549678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

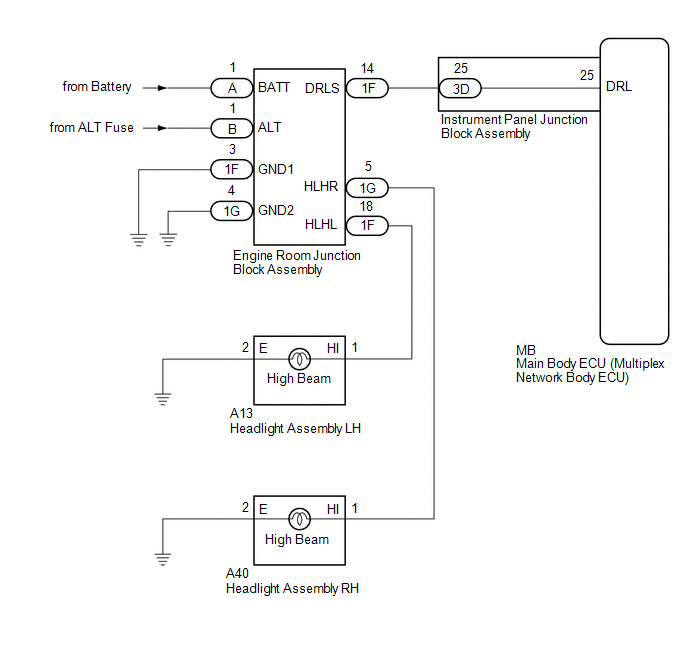

  2. for Halogen Headlight:
    GTY540917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
