Terminals Of Ecu [10/2014 - ]
- COMBINATION METER ASSEMBLY
- Measure the voltage and resistance according to the value(s) in the table below.
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition D8-1 (B) - Body ground R - Body ground Battery Always 11 to 14 V D8-3 (ER) - Body ground V - Body ground RH turn indicator light signal (Input) Engine switch on (IG), RH turn signal switch off 11 to 14 V Engine switch on (IG), RH turn signal switch on Below 1 V D8-4 (EL) - Body ground L - Body ground LH turn indicator light signal (Input) Engine switch on (IG), LH turn signal switch off 11 to 14 V Engine switch on (IG), LH turn signal switch on Below 1 V D8-5 (HAZ) - Body ground W - Body ground Hazard warning signal switch signal (Input) Engine switch on (IG), hazard warning signal switch not pressed Below 1 V Engine switch on (IG), hazard warning signal switch pressed 11 to 14 V D8-7 (LL) - Body ground B - Body ground LH turn indicator light signal (Output) Engine switch on (IG), LH turn indicator light off Below 1 V Engine switch on (IG), LH turn indicator light blinks 11 to 14 V ←→ Below 1 V D8-13 (LR) - Body ground G - Body ground RH turn indicator light signal (Output) Engine switch on (IG), RH turn indicator light off Below 1 V Engine switch on (IG), RH turn indicator light blinks 11 to 14 V ←→ Below 1 V D9-1 (B) - Body ground B - Body ground Battery Always 11 to 14 V D9-4 (ILL-) - Body ground SB - Body ground Illumination signal Headlight dimmer switch off Below 1 V Headlight dimmer switch tail or head position Pulse generation D9-6 (EP) - Body ground W-B - Body ground Ground Always Below 1 Ω D9-7 (ES) - Body ground W - Body ground Ground Always Below 1 Ω D9-8 (SI) - Body ground LG - Body ground Speed signal for other system (Input) Engine switch on (IG), wheel being rotated Pulse generation
(See waveform 1)D9-9 (+S) - Body ground P - Body ground Speed signal for other system (Output) Engine switch on (IG), wheel being rotated Pulse generation
(See waveform 1)D9-11 (S) - Body ground B - Body ground Oil pressure signal Engine switch on (IG), oil pressure warning light off 11 to 14 V Engine switch on (IG), oil pressure warning light on Below 1 V D9-12 (LVWG)*1 - Body ground SB - Body ground Headlight leveling signal Engine switch on (IG), "Check Headlight Leveling System" not displayed in multi-information display 11 to 14 V Engine switch on (IG), "Check Headlight Leveling System" displayed in multi-information display Below 1 V D9-13 (IG+) - Body ground P - Body ground Engine switch signal Engine switch off Below 1 V Engine switch on (IG) 11 to 14 V D9-15 (CANL) - Body ground W - Body ground CAN communication line - - D9-16 (CANH) - Body ground R - Body ground CAN communication line - - D9-18 (FR) - D9-17 (FE) GR - Y Fuel level signal Engine switch on (IG), fuel level warning off Below 1 V Engine switch on (IG), fuel level warning on 4.5 to 9 V D9-19 (SW) - Body ground B - Body ground Brake fluid level signal Engine switch on (IG), brake fluid level not low 11 to 14 V Engine switch on (IG), brake fluid level low Below 1 V D9-20 (SW) - Body ground BE - Body ground Turn switch signal Engine switch on (IG), LH and RH turn signal switch off 11 to 14 V Engine switch on (IG), LH or RH turn signal switch on Below 1 V D9-21 (CHG-) - Body ground BR - Body ground Charge warning light signal Engine switch on (IG), charge warning light off 11 to 14 V Engine switch on (IG), charge warning light on Below 1 V D9-22 (CHK) - Body ground R - Body ground MIL (Check engine warning light) signal Engine switch on (IG), MIL off 11 to 14 V Engine switch on (IG), MIL on Below 1 V D9-23 (MSSL) - Body ground L - Body ground DISP switch (Steering pad switch assembly) signal Engine switch on (IG), DISP switch not pressed 4 to 5 V Engine switch on (IG), DISP switch pressed Below 1 V D9-24 (WLVL) - Body ground LG - Body ground Washer fluid level signal Engine switch on (IG), washer fluid level not low 11 to 14 V Engine switch on (IG), washer fluid level low Below 1 V - *1: w/ Automatic Headlight Beam Level Control System

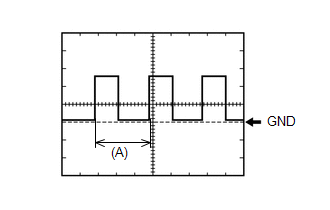

- Waveform 1 (Reference):
Item Condition Tool setting 5 V/DIV., 20 ms./DIV. Vehicle condition Engine switch on (IG), wheel being rotated HINT:
When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.
- Measure the voltage and resistance according to the value(s) in the table below.
