Engine Control, Electronically Controlled Transmission And A/T Indicator, Cruise Control

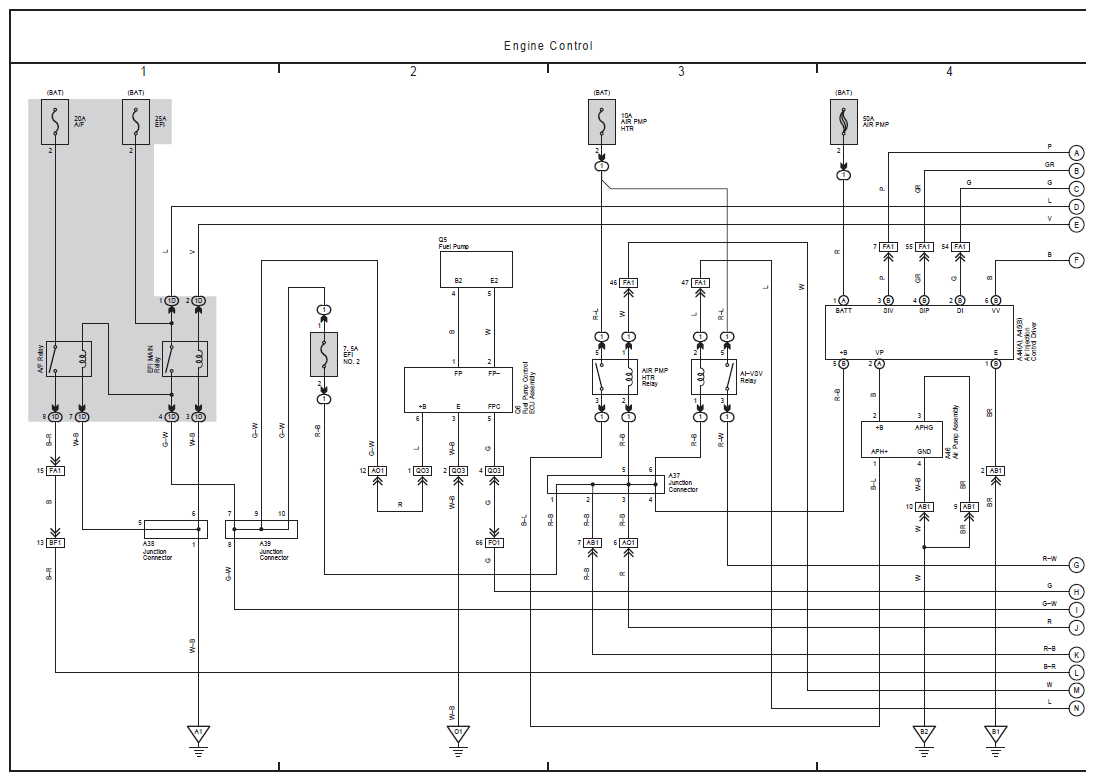

G12197684
G12197685
G12197686
G12197687
G12197688

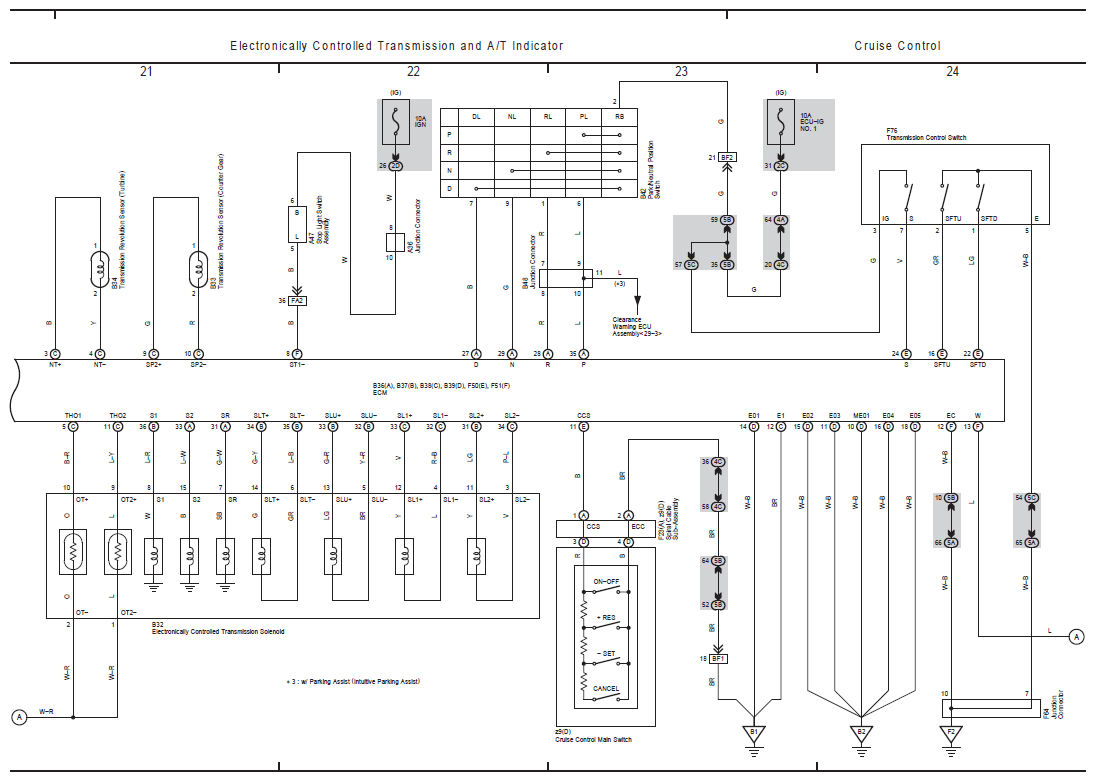

G12197689
G12197690
