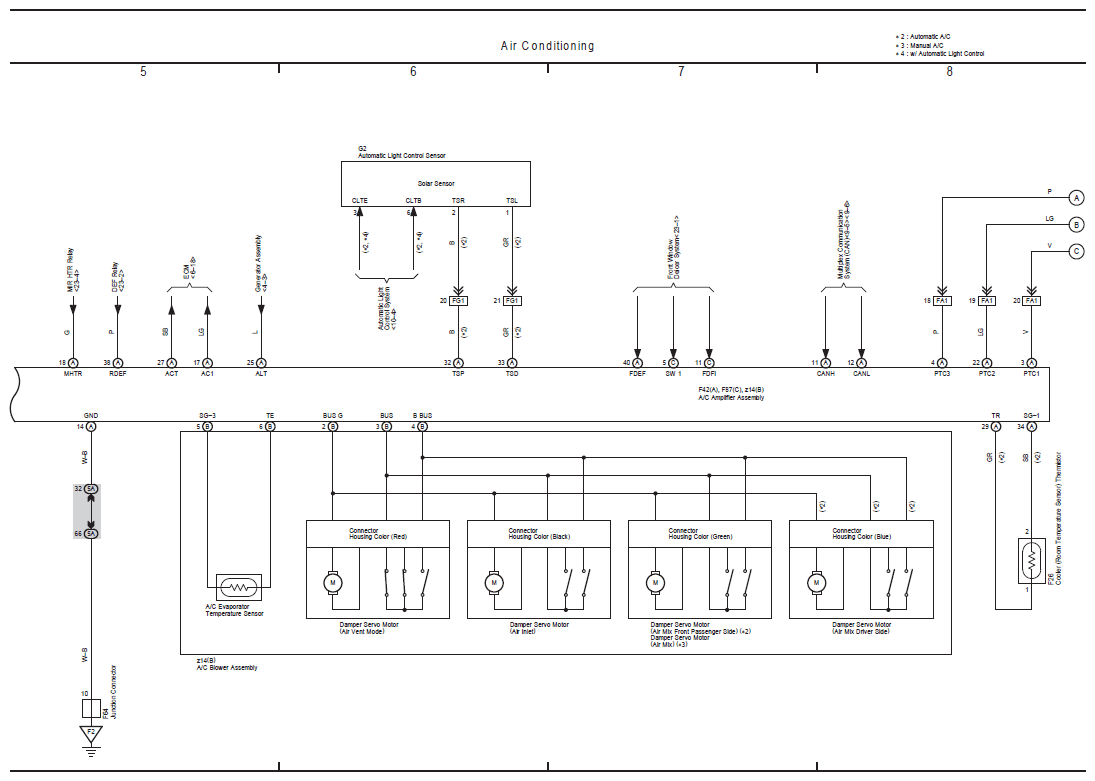

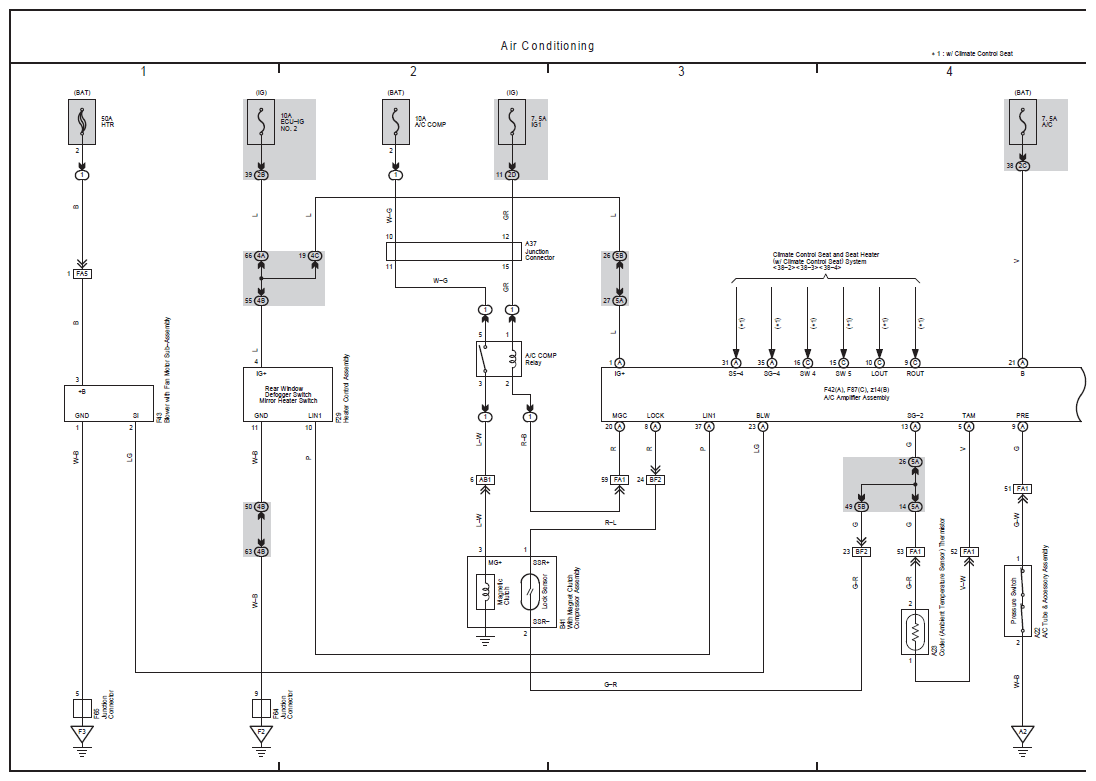

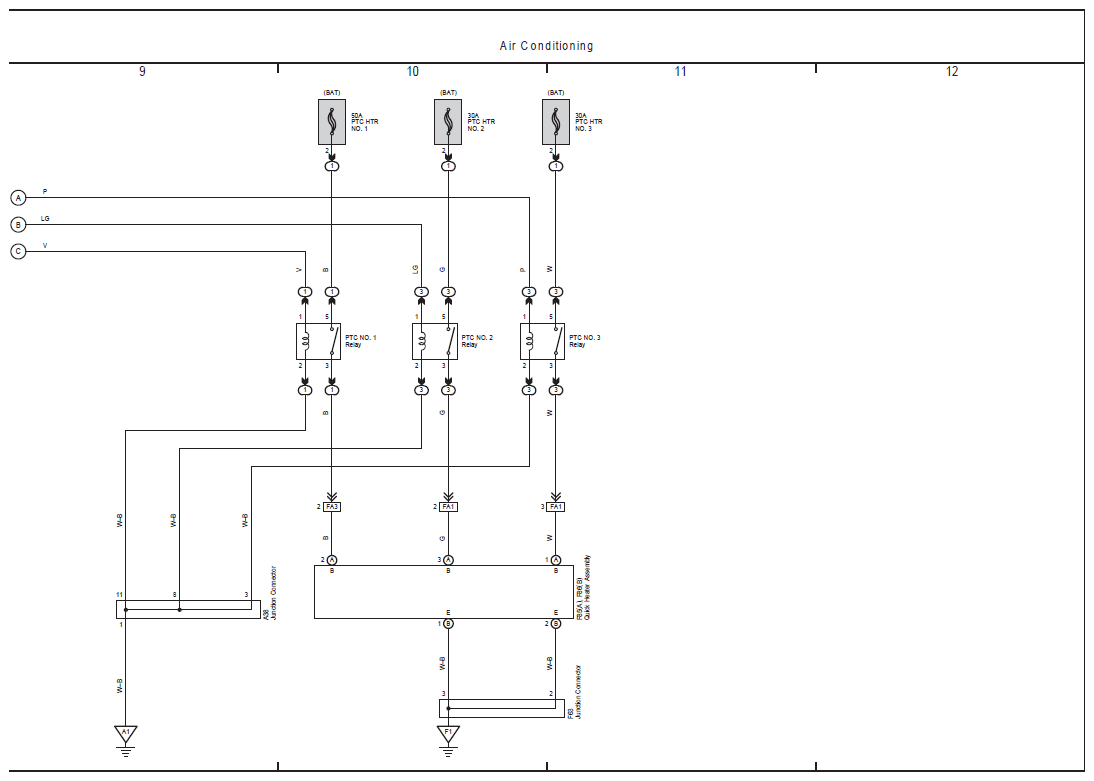

Home >> Toyota >> 2016 >> 4Runner Trail >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Air Conditioning
