DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [08/2019 - ]: Wiring Diagram

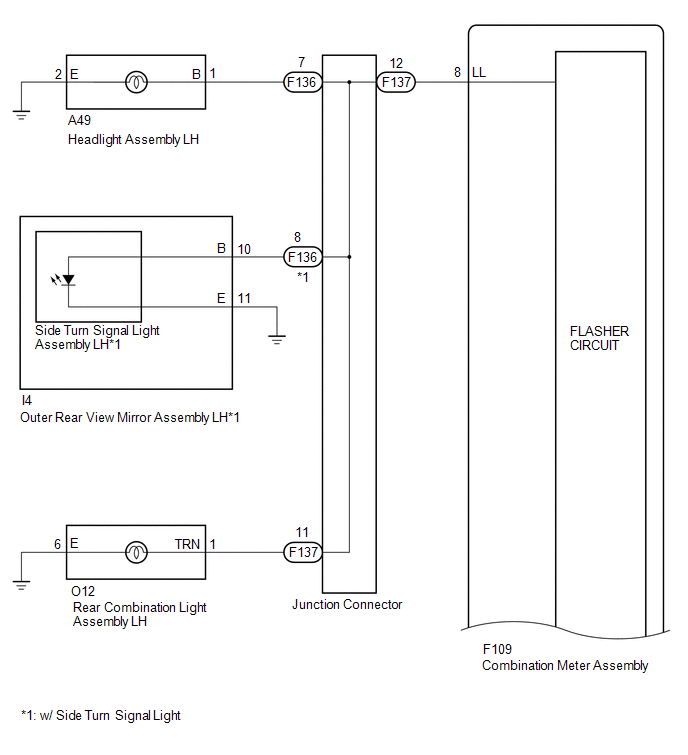

GTY900062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

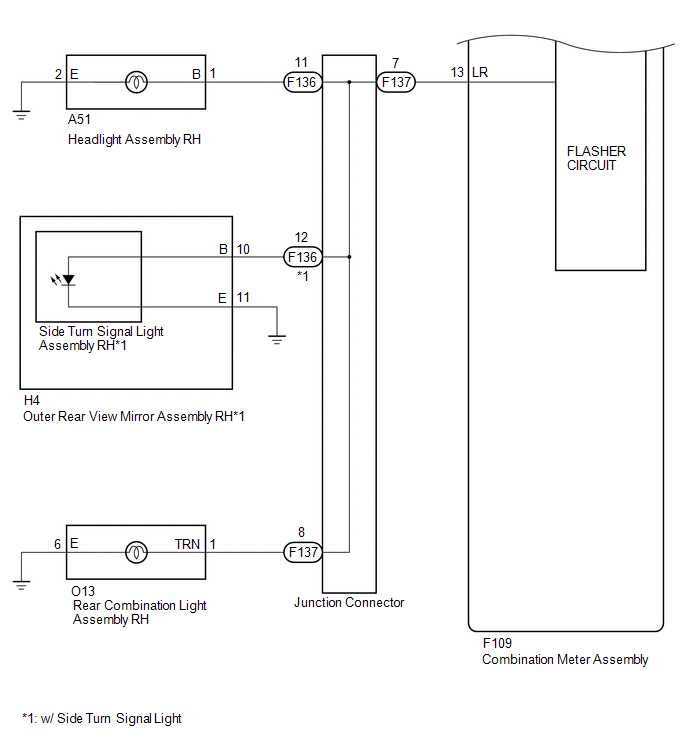

GTY923561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
