Removal [08/2020 - ]: Procedure

  1. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [08/2015 - ]

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1

  3. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

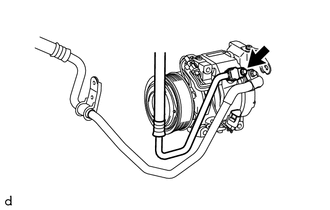

    1. Remove the bolt and disconnect the discharge hose sub-assembly from the cooler compressor assembly.
      GTY989852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  4. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

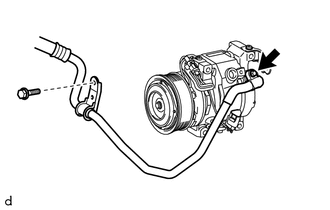

    1. Remove the 2 bolts and disconnect the suction hose sub-assembly from the cooler compressor assembly.
      GTY989854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  5. REMOVE COOLER COMPRESSOR ASSEMBLY

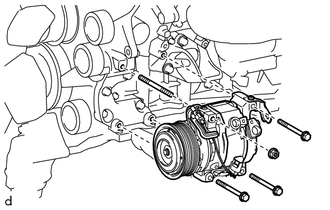

    1. Disconnect the connector.
      GTY990026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and nut.
    3. Remove the stud bolt and cooler compressor assembly.
