Removal [08/2015 - 08/2020]: Procedure

  1. REMOVE GENERATOR ASSEMBLY
    1. Remove the generator assembly (Refer to REMOVAL [08/2015 - ] ).
  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1

  3. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the discharge hose from the cooler compressor.
      GTY221753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  4. DISCONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the 2 bolts and disconnect the suction hose from the cooler compressor.
      GTY221754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  5. REMOVE COOLER COMPRESSOR ASSEMBLY
    1. Disconnect the connector.

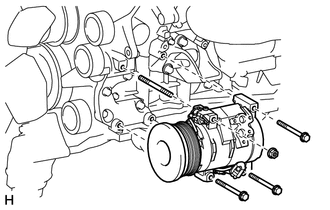

      GTY234624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and nut.
    3. Remove the stud bolt and cooler compressor.
