Installation [08/2020 - ]: Procedure

  1. ADJUST COMPRESSOR OIL
    1. When replacing the cooler compressor assembly and magnetic clutch assembly with a new one, gradually discharge the refrigerant gas from the service valve and drain the following amount of oil from the new cooler compressor assembly and magnetic clutch assembly before installation.

      Standard

      (Oil capacity inside the new cooler compressor assembly and magnetic clutch assembly: 120 + 15 cc (4.1 + 0.51 fl.oz.)) - (Remaining oil amount in the removed cooler compressor assembly and magnetic clutch assembly) = (Oil amount to be removed from the new cooler compressor assembly when replacing)

      NOTE:
      • When checking the compressor oil level, follow the A/C system precautions.
      • If a new cooler compressor assembly and magnetic clutch assembly is installed without removing some of the oil remaining in the pipes of the vehicle, the oil amount will be too large. This prevents heat exchange in the refrigerant cycle and causes refrigerant failure.
      • If the volume of oil remaining in the removed cooler compressor assembly and magnetic clutch assembly is too small, check for oil leakage.
      • Be sure to use ND-OIL 8 or equivalent compressor oil.
  2. INSTALL COOLER COMPRESSOR ASSEMBLY

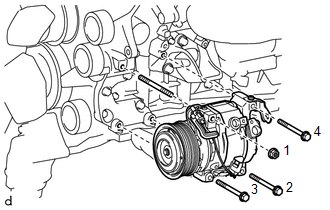

    Fig 1: Cooler Compressor Assembly Tightening Sequence
    GTY989871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the cooler compressor assembly with the stud bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Install the 3 bolts and nut.

      Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

      HINT:

      Tighten the bolts and nut in the order shown in the illustration.

    3. Connect the connector.
  3. CONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the attached vinyl tape from the suction hose sub-assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor assembly.

      Compressor oil

      ND-OIL 12 or equivalent

    3. Install the O-ring to the suction hose sub-assembly.
    4. Connect the suction hose sub-assembly with the 2 bolts.
      GTY989688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for bolt A

      Torque: 7.8 N.m (80 kgf/cm, 69 in.lbf)

      for bolt B

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

  4. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the attached vinyl tape from the discharge hose sub-assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor assembly.

      Compressor oil

      ND-OIL 12 or equivalent

    3. Install the O-ring to the discharge hose sub-assembly.
    4. Connect the discharge hose sub-assembly to the cooler compressor assembly with the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

  5. INSTALL GENERATOR ASSEMBLY

    Refer to INSTALLATION [08/2015 - ]

  6. CHARGE REFRIGERANT

    See step  2

  7. WARM UP ENGINE

    See step  3

  8. CHECK FOR REFRIGERANT GAS LEAK

    See step  4
