Section 6 (Transfer Case (VF2A) - Inspection)
>>
Transfer System
>>

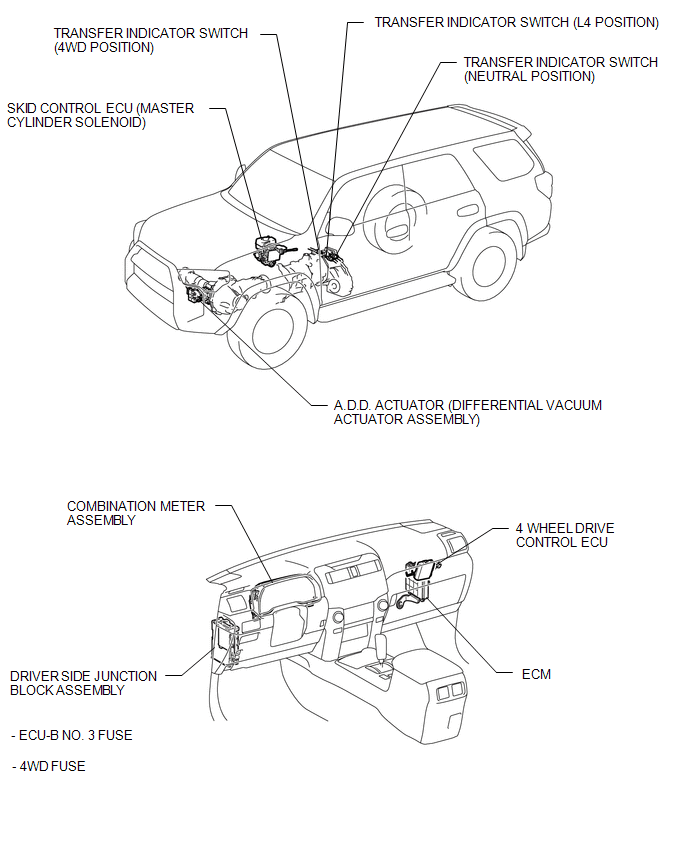

Parts Location [08/2019 - ]
>>
Illustration
Parts Location [08/2019 - ]: Illustration
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
