DTC P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) [08/2015 - 08/2019]: Description
WARNING: This page is about a different variant/trim than selected.

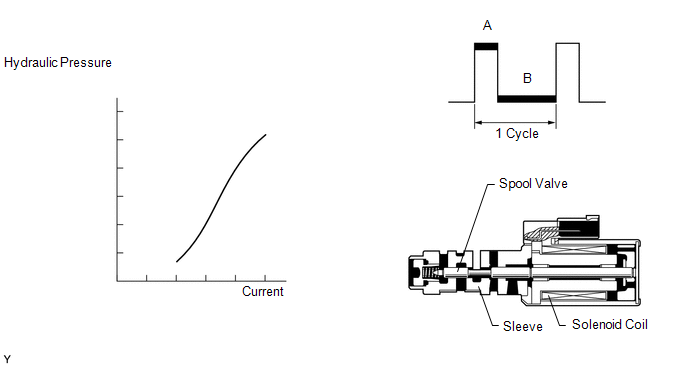

The amount of current flow to the solenoid is controlled by the duty ratio* of the ECM output signal. During the lock-up operation, if the duty ratio increases, the lock-up hydraulic pressure increases.
HINT:
*: The duty ratio is the ratio of the current ON time (A) to the total of the current ON and OFF time (A + B). Duty Ratio (%) = A / (A + B) x 100
| DTC Code | DTC Detection Condition | Trouble Area |
|---|---|---|
| P2759 | Open or short is detected in the shift solenoid valve SLU circuit for 1 sec. or more while driving (1-trip detection logic). |
|
