DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) [08/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT TRANSMISSION CONTROL SWITCH
    1. Disconnect the F76 transmission control switch connector.
      GTY853907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 (IG) - 7 (S) Shift lever in S, "+" or "-" Below 1 Ω
      3 (IG) - 7 (S) Shift lever not in S, "+" or "-" 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Transmission Control Switch)

    Result:

    NG

    REPLACE TRANSMISSION CONTROL SWITCH (TRANSMISSION FLOOR SHIFT ASSEMBLY). Refer to  REMOVAL [08/2015 - ]

    Result:

    OK

    See step  2

  2. CHECK TRANSMISSION CONTROL SWITCH (POWER SOURCE)
    1. Disconnect the F76 transmission control switch connector.
      GTY719892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      F76-3 (IG) - Body ground Ignition switch ON 11 to 14 V
      F76-3 (IG) - Body ground Ignition switch off Below 1 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Transmission Control Switch)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION CONTROL SWITCH - BATTERY)

    Result:

    OK

    See step  3

  3. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Disconnect the B42 park/neutral position switch connector.
      GTY689369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      • 2 (RB) - 6 (PL)
      • 4 (B) - 5 (L)
      		 Shift lever in P Below 1 Ω
      2 (RB) - 1 (RL) Shift lever in R Below 1 Ω
      • 2 (RB) - 9 (NL)
      • 4 (B) - 5 (L)
      		 Shift lever in N Below 1 Ω
      2 (RB) - 7 (DL)
      • Shift lever in D
      • Shift lever in S, "+" or "-"
      		 Below 1 Ω
      • 2 (RB) - 6 (PL)
      • 4 (B) - 5 (L)
      		 Shift lever not in P 10 kΩ or higher
      2 (RB) - 1 (RL) Shift lever not in R 10 kΩ or higher
      • 2 (RB) - 9 (NL)
      • 4 (B) - 5 (L)
      		 Shift lever not in N 10 kΩ or higher
      2 (RB) - 7 (DL)
      • Shift lever not in D
      • Shift lever not in S, "+" or "-"
      		 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Park/Neutral Position Switch)

    Result:

    NG

    REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY. Refer to  REMOVAL [08/2015 - ]

    Result:

    OK

    See step  4

  4. CHECK PARK/NEUTRAL POSITION SWITCH ASSEMBLY (POWER SOURCE)
    1. Disconnect the B42 park/neutral position switch connector.
      GTY738517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      B42-2 (RB) - Body ground Ignition switch ON 11 to 14 V
      B42-2 (RB) - Body ground Ignition switch off Below 1 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Park/Neutral Position Switch)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH - BATTERY)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM)
    1. Disconnect the B36 ECM connector.

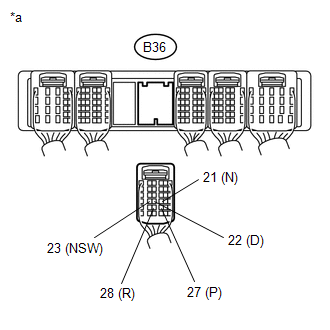

      GTY919470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      B36-27 (P) - Body ground
      • Ignition switch ON
      • Shift lever in P
      		 11 to 14 V
      B36-28 (R) - Body ground
      • Ignition switch ON
      • Shift lever in R
      		 11 to 14 V*
      B36-21 (N) - Body ground
      • Ignition switch ON
      • Shift lever in N
      		 11 to 14 V
      B36-22 (D) - Body ground
      • Ignition switch ON
      • Shift lever in D
      		 11 to 14 V
      B36-23 (NSW) - Body ground
      • Ignition switch ON
      • Shift lever not in P or N
      		 11 to 14 V
      B36-27 (P) - Body ground
      • Ignition switch ON
      • Shift lever not in P
      		 Below 1 V
      B36-28 (R) - Body ground
      • Ignition switch ON
      • Shift lever not in R
      		 Below 1 V
      B36-21 (N) - Body ground
      • Ignition switch ON
      • Shift lever not in N
      		 Below 1 V
      B36-22 (D) - Body ground
      • Ignition switch ON
      • Shift lever not in D
      		 Below 1 V
      B36-23 (NSW) - Body ground
      • Ignition switch ON
      • Shift lever in P or N
      		 Below 1 V
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to ECM)

      HINT:

      *: The voltage will drop slightly due to the illumination of the back-up light.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
    1. Disconnect the F50 ECM connector.

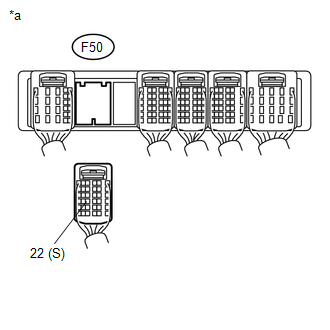

      GTY904060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      F50-22 (S) - Body ground Shift lever in S, "+" or "-" 11 to 14 V
      F50-22 (S) - Body ground Shift lever not in S, "+" or "-" Below 1 V
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to ECM)

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [08/2015 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
