On-Vehicle Inspection [08/2015 - 08/2019]: Procedure
WARNING: This page is about a different variant/trim than selected.
- CHECK TRANSFER OIL

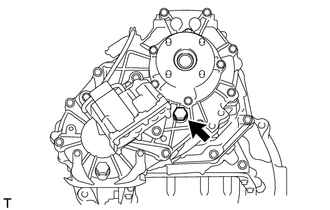

- Remove the filler plug and gasket.
- Check that the oil level is between 0 to 5.0 mm (0 to 0.196 in.) from the bottom lip of the filler plug hole.
If the result is not as specified, add transfer oil.
TEXT IN ILLUSTRATION*a 0 to 5 mm (0 to 0.196 in.) NOTE:Too much or too little oil will lead to transfer problems.
- When the oil level is too low, check for oil leaks.
- Install a new gasket to the filler plug and then tighten the plug.
Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)
- Remove the filler plug and gasket.
- ADD TRANSFER OIL
- Remove the filler plug and gasket.
- Add transfer oil so that the oil level is between 0 to 5.0 mm (0 to 0.196 in.) from the bottom lip of the filler plug hole.NOTE:
- Add transfer oil slowly.
- Add transfer oil a little at a time, waiting several minutes between each addition of transfer oil.
HINT:
- Viscosity
SAE 75W
Capacity
1.0 liters (1.1 US qts, 0.9 lmp.qts)
- Wait approximately 5 minutes and check that the oil level has not changed.
- Install a new gasket to the filler plug and then tighten the plug.
Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)
