Removal [08/2015 - 08/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER

    (Refer to REMOVAL [08/2015 - 08/2019] )

  2. REMOVE NO. 1 TRANSFER INDICATOR SWITCH (4WD POSITION)
    1. Remove the No. 1 transfer indicator switch and gasket.

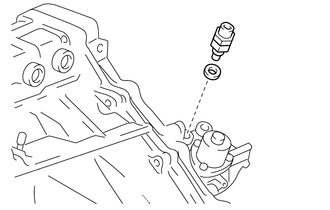

      GTY363769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 TRANSFER INDICATOR SWITCH (L4 POSITION)

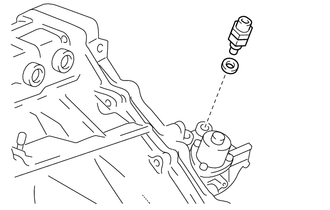

    GTY363759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 transfer indicator switch and gasket.
