Section 4 (Transfer Case (VF2BM) - Service Information)
>>
Transfer Case Rear Oil Seal
>>
Components [08/2015 - 08/2019]
Components [08/2015 - 08/2019]
WARNING:
This page is about a different variant/trim than selected.

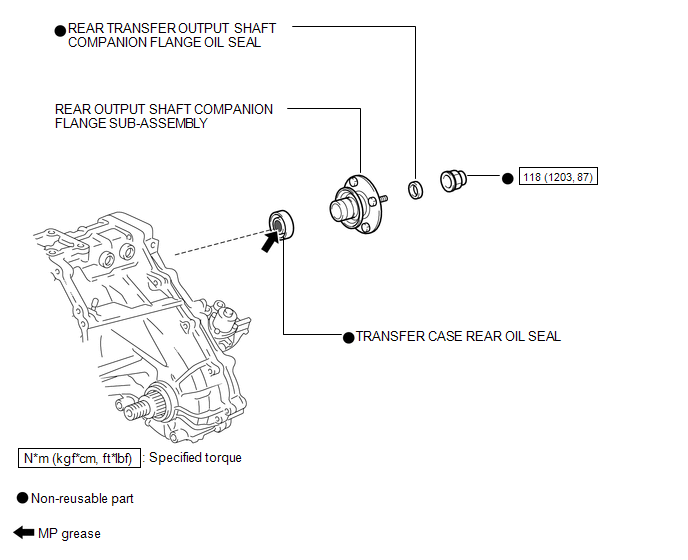

Fig 1: Transfer Case Rear Oil Seal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
