Disassembly [08/2015 - 08/2019]: Procedure

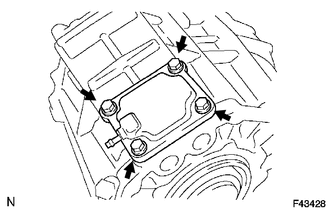

- REMOVE TRANSFER CASE COVER SUB-ASSEMBLY
- Remove the 4 bolts and the transfer case cover sub-assembly.
- REMOVE BREATHER OIL DEFLECTOR SUB-ASSEMBLY
- Remove the breather oil deflector sub-assembly.

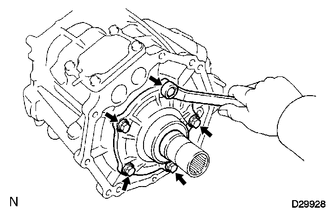

- REMOVE FRONT TRANSFER BEARING RETAINER SUB-ASSEMBLY
- Remove the 5 bolts and the front transfer bearing retainer sub-assembly.
HINT:
If necessary, tap the front transfer bearing retainer sub-assembly with a plastic-faced hammer to remove it.
- Remove the 5 bolts and the front transfer bearing retainer sub-assembly.
- REMOVE FRONT TRANSFER BEARING RETAINER OIL SEAL
- Using a screwdriver and hammer, remove the front transfer bearing retainer oil seal.
- REMOVE FRONT OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
- Using a chisel and hammer, loosen the staked part of the lock nut.

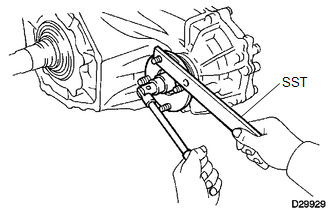

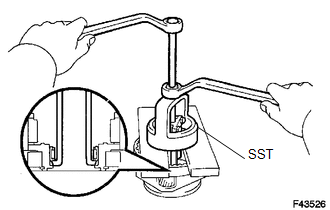

- Using SST to hold the front output shaft companion flange sub-assembly, remove the lock nut.
- SST: 09330-00021

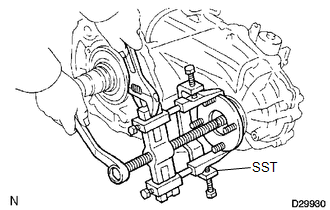

- Using SST, remove the front output shaft companion flange sub-assembly.
- SST: 09950-40011
- 09951-04020
- 09952-04010
- 09953-04030
- 09954-04010
- 09955-04051
- 09957-04010
- 09958-04011
- SST: 09950-40011
- REMOVE FRONT TRANSFER OUTPUT SHAFT COMPANION FLANGE OIL SEAL
- Using a screwdriver and hammer, remove the front transfer output shaft companion flange oil seal.NOTE:
Be careful not to damage the oil seal and companion flange contact surfaces.
- Using a screwdriver and hammer, remove the front transfer output shaft companion flange oil seal.
- REMOVE REAR OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
- Remove the rear output shaft companion flange sub-assembly using the same procedure as for the front output shaft companion flange sub-assembly.
- SST: 09330-00021
- SST: 09950-40011
- 09951-04020
- 09952-04010
- 09953-04030
- 09954-04010
- 09955-04051
- 09957-04010
- 09958-04011
- Remove the rear output shaft companion flange sub-assembly using the same procedure as for the front output shaft companion flange sub-assembly.
- REMOVE REAR TRANSFER OUTPUT SHAFT COMPANION FLANGE OIL SEAL

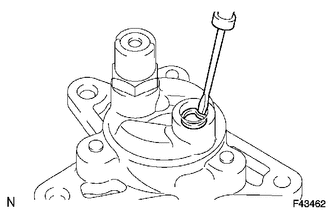

- Using a screwdriver and hammer, remove the rear transfer output shaft companion flange oil seal.
- REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
- Remove the bolt and speedometer driven hole cover sub-assembly.
- Remove the O-ring from speedometer driven hole cover sub-assembly.
- REMOVE TRANSFER EXTENSION HOUSING SUB-ASSEMBLY

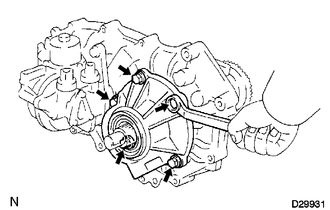

- Remove the 5 bolts and transfer extension housing sub-assembly.
HINT:
If necessary, tap the transfer extension housing sub-assembly with a plastic-faced hammer to remove it.
- Remove the 5 bolts and transfer extension housing sub-assembly.
- REMOVE TRANSFER CASE REAR OIL SEAL
- Using a screwdriver and hammer, remove the transfer case rear oil seal.
- REMOVE TRANSFER OUTPUT SHAFT WASHER
- REMOVE COLLAR
- Remove the collar.
- REMOVE REAR TRANSFER CASE

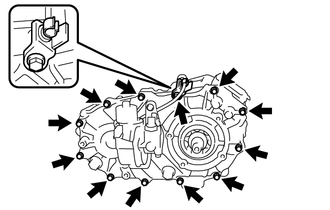

- Remove the 12 bolts and clamp.
- Remove the rear transfer case.
HINT:
If necessary, tap the rear transfer case with a plastic-faced hammer to remove it.
- REMOVE TRANSFER FRONT DRIVE SHIFT FORK SHAFT

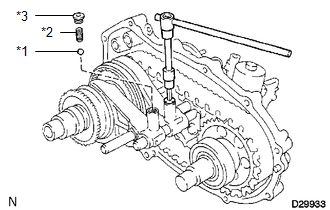

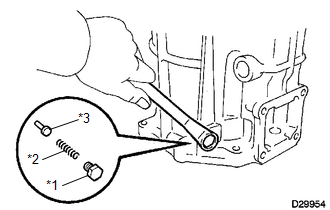

- Using a hexagon wrench (6 mm), remove the 2 shift detent ball spring plugs, 2 shift fork compression springs and 2 shift detent balls.TEXT IN ILLUSTRATION

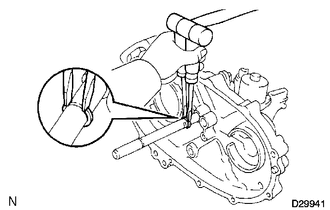

*1 Shift Detent Ball *2 Shift Fork Compression Spring *3 Shift Detent Ball Spring Plug - Using 2 screwdrivers and a hammer, tap out the 2 transfer gear shift fork shaft snap rings.

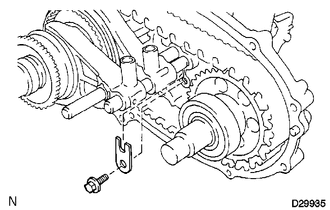

- Remove the bolt and transfer shift shaft stopper.

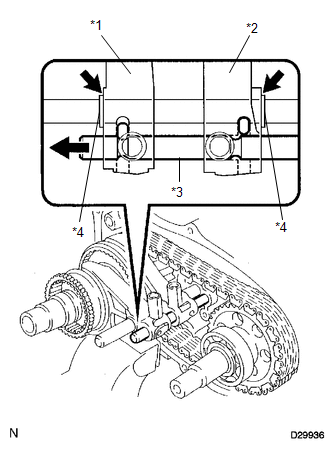

- To pull out the transfer front drive shift fork shaft, shift the No. 1 and No. 2 transfer gear shift forks to the positions shown in the illustration.TEXT IN ILLUSTRATION
*1 No. 2 Transfer Gear Shift Fork *2 No. 1 Transfer Gear Shift Fork *3 Transfer Front Drive Shift Fork Shaft *4 Shift Fork Shaft Snap Ring - Pull out the transfer front drive shift fork shaft.

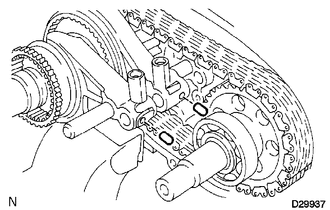

- Using a magnetic finger, remove the 2 shift inter lock pins.
- Using a hexagon wrench (6 mm), remove the 2 shift detent ball spring plugs, 2 shift fork compression springs and 2 shift detent balls.
- REMOVE REAR OUTPUT SHAFT ASSEMBLY, FRONT DRIVE CHAIN, DRIVEN SPROCKET ASSEMBLY, NO. 1 AND NO. 2 TRANSFER GEAR SHIFT FORKS

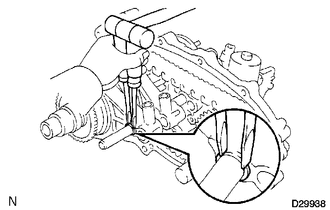

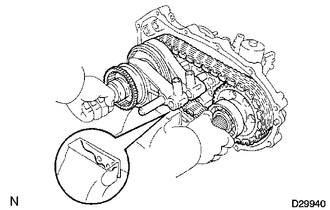

- Using 2 screwdrivers and a hammer, tap out the transfer gear shift fork shaft snap ring.
HINT:
Remove only the transfer gear shift fork shaft snap ring on the front side of the transfer front drive shift fork shaft.

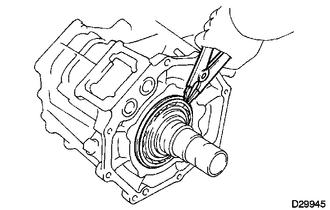

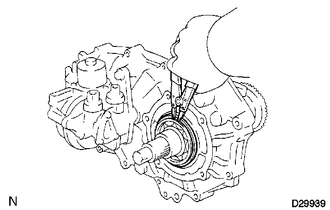

- Using a snap ring expander, remove the transfer output shaft snap ring.
- Mount the rear transfer case in a vise.
- Using a plastic-faced hammer, carefully tap the rear transfer case and remove the rear output shaft assembly, driven sprocket assembly, front drive chain, No. 1 and No. 2 transfer gear shift forks.
- Remove the driven sprocket assembly, front drive chain, No. 1 and No. 2 transfer gear shift forks from the rear output shaft assembly.
- Using 2 screwdrivers and a hammer, tap out the transfer gear shift fork shaft snap ring.
- REMOVE TRANSFER SHIFT ACTUATOR ASSEMBLY

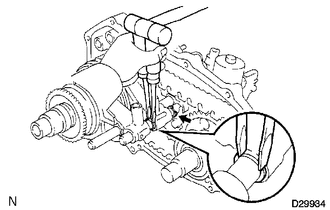

- Using 2 screwdrivers and a hammer, remove the transfer gear shift fork shaft snap ring.

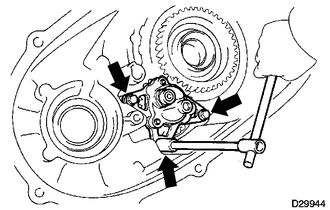

- Remove the 3 bolts and transfer shift actuator assembly.
- REMOVE NO. 1 TRANSFER INDICATOR SWITCH
- REMOVE TRANSFER DRIVEN SPROCKET BEARING

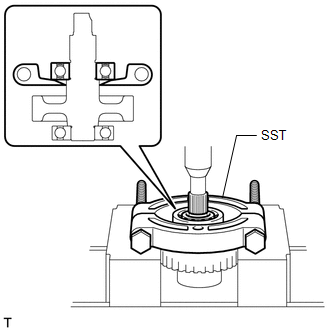

- Using SST and a press, remove the transfer driven sprocket bearing.
- SST: 09555-55010
- Using SST and a press, remove the transfer driven sprocket bearing.
- REMOVE TRANSFER INPUT GEAR RADIAL BALL BEARING
- REMOVE FILLER PLUG
- Remove the filler plug and gasket.
- REMOVE DRAIN PLUG
- Remove the drain plug and gasket.

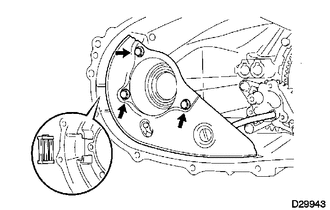

- REMOVE TRANSFER OIL SEPARATOR SUB-ASSEMBLY
- Remove the 3 bolts and transfer oil separator sub-assembly.
- REMOVE TRANSFER CASE MAGNET
- Remove the transfer case magnet.
- REMOVE TRANSFER OIL PUMP BODY SUB-ASSEMBLY
- Remove the 3 bolts and transfer oil pump body sub-assembly.
- REMOVE TRANSFER OIL PUMP GEAR
- Remove the transfer oil pump gear.
- REMOVE TRANSFER OIL PUMP BODY O-RING
- Using a screwdriver, remove the transfer oil pump body O-ring.

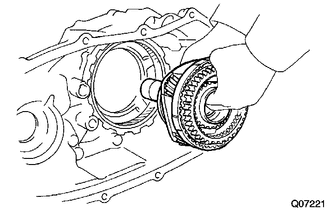

- REMOVE LOW PLANETARY GEAR ASSEMBLY WITH INPUT SHAFT SUB-ASSEMBLY
- REMOVE TRANSFER CASE PLUG
- REMOVE TRANSFER LOW PLANETARY RING GEAR

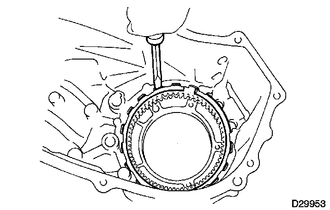

- Using a screwdriver, remove the transfer low planetary ring gear hole snap ring.
- Remove the transfer low planetary ring gear from the front case.
- REMOVE TRANSFER CASE FRONT OIL SEAL
- Using a screwdriver and hammer, remove the transfer case front oil seal.
- REMOVE TRANSFER LOW PLANETARY GEAR SPLINE PIECE
- REMOVE TRANSFER OUTPUT SHAFT FRONT NEEDLE ROLLER BEARING
- Remove the 2 transfer output shaft front needle roller bearings.
- REMOVE TRANSFER INPUT GEAR STOPPER SHAFT SNAP RING
- Using a snap ring expander, remove the transfer input gear stopper shaft snap ring.
- REMOVE TRANSFER INPUT GEAR STOPPER
- REMOVE TRANSFER INPUT GEAR STOPPER BALL
- Remove the transfer input gear stopper ball.
- REMOVE MANUAL TRANSFER PLANETARY CARRIER WASHER
- Remove the manual transfer planetary carrier washer.

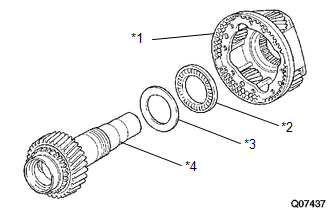

- REMOVE TRANSFER INPUT SHAFT
- REMOVE NO. 1 TRANSFER THRUST BEARING RACE
- Remove the No. 1 transfer thrust bearing race.
- REMOVE TRANSFER LOW PLANETARY GEAR BEARING
- Remove the transfer low planetary gear bearing.
- REMOVE NO. 1 TRANSFER INPUT SHAFT SEAL RING
- REMOVE TRANSFER INPUT SHAFT BEARING
- Using a snap ring expander, remove the transfer input bearing shaft snap ring.

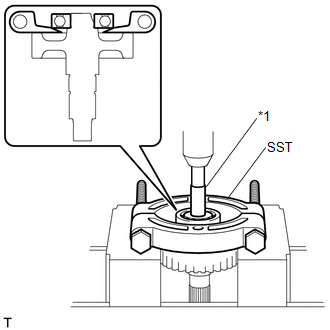

- Using SST and a press, remove the transfer input shaft bearing.
- SST: 09554-30011
- SST: 09555-55010
- REMOVE TRANSFER LOW PLANETARY GEAR BEARING
- Using SST, remove the transfer low planetary gear bearing.
- SST: 09612-65014
- 09612-01030
- 09612-01050
NOTE:Hang SST securely to the clearance between the bearing and the low planetary gear.
- SST: 09612-65014
- Using SST, remove the transfer low planetary gear bearing.
- INSPECT DRIVE SPROCKET THRUST CLEARANCE
- Using a feeler gauge, measure the transfer drive sprocket sub-assembly thrust clearance.
Standard clearance
0.10 to 0.25 mm (0.00394 to 0.00984 in.)
Maximum clearance
0.25 mm (0.00984 in.)
If the clearance exceeds the maximum, replace the transfer drive sprocket sub-assembly.
- Using a feeler gauge, measure the transfer drive sprocket sub-assembly thrust clearance.
- REMOVE TRANSFER CLUTCH HUB
- REMOVE REAR TRANSFER OUTPUT SHAFT RADIAL BALL BEARING
- Using SST and a press, remove the rear transfer output shaft radial ball bearing.
- SST: 09555-55010
- Using SST and a press, remove the rear transfer output shaft radial ball bearing.
- REMOVE TRANSFER DRIVE SPROCKET SUB-ASSEMBLY
- Remove the transfer output shaft spacer and transfer output shaft spacer ball.

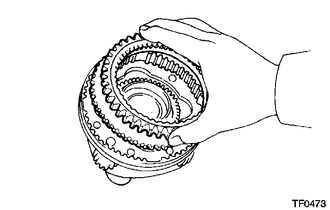

- Remove the transfer drive sprocket sub-assembly, transfer synchronizer inner ring, center ring, outer ring and front drive clutch sleeve together.
- Remove the transfer drive sprocket bearing.
- Remove the synchronizer inner ring, center ring, outer ring and front drive clutch sleeve.
- Remove the 3 No. 1 transfer synchromesh shifting keys and the 2 No. 1 transfer synchromesh shifting key springs.TEXT IN ILLUSTRATION
*1 Transfer Output Shaft Spacer *2 Transfer Output Shaft Spacer Ball *3 Transfer Drive Sprocket Sub-assembly *4 Transfer Synchronizer Inner Ring *5 Transfer Synchronizer Center Ring *6 Transfer Synchronizer Outer Ring *7 Front Drive Clutch Sleeve *8 Transfer Drive Sprocket Bearing
