Components [08/2015 - 08/2019]

WARNING: This page is about a different variant/trim than selected.

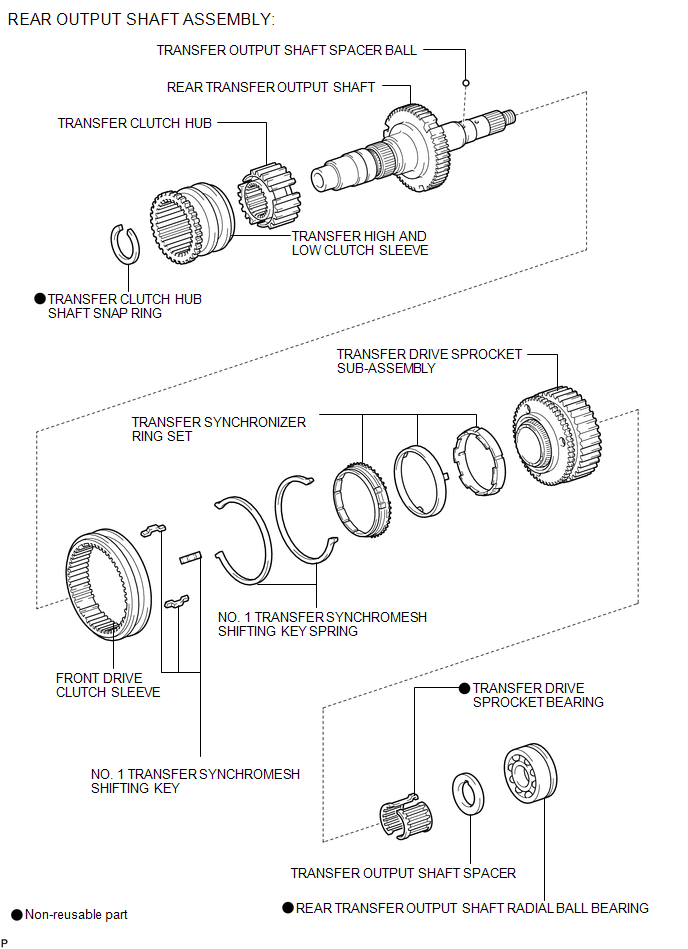

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

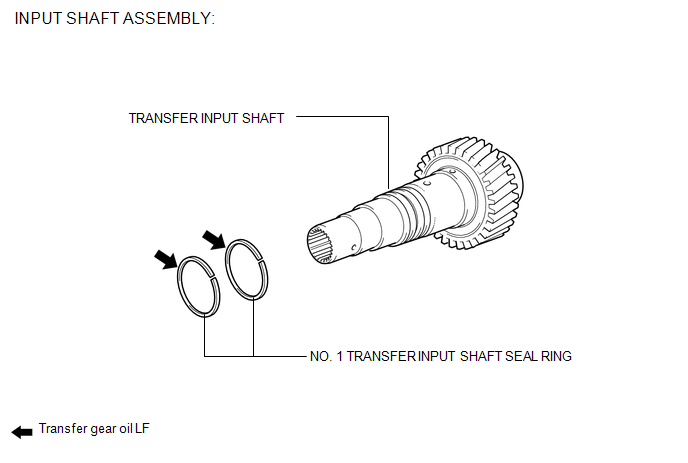

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

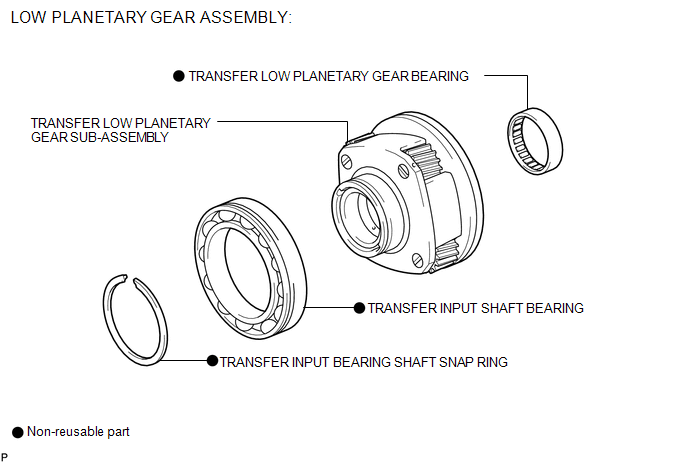

Fig 3: Transfer Assembly Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

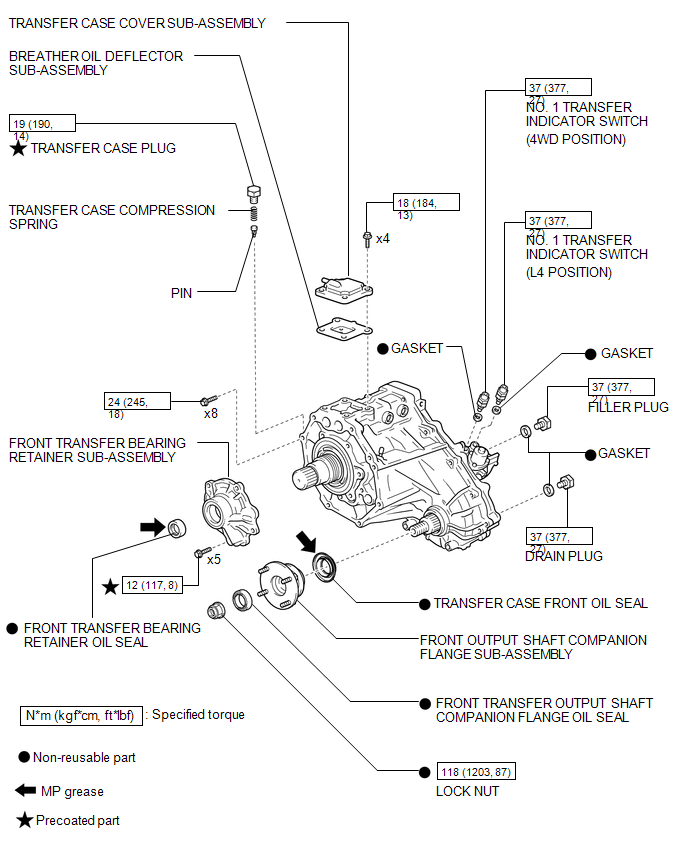

Fig 4: Transfer Assembly Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

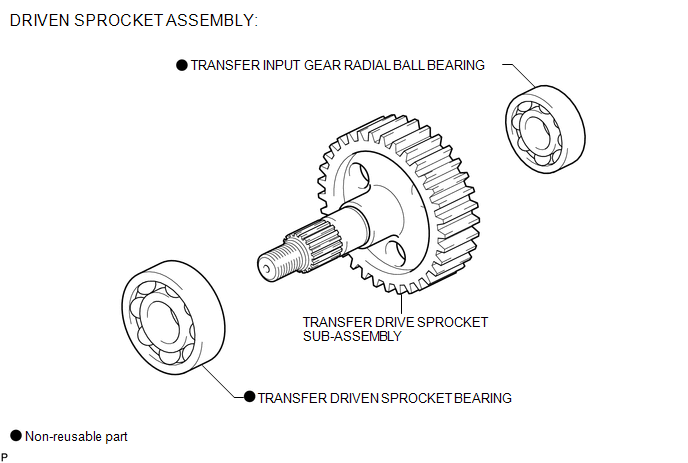

Fig 5: Transfer Assembly Replacement Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

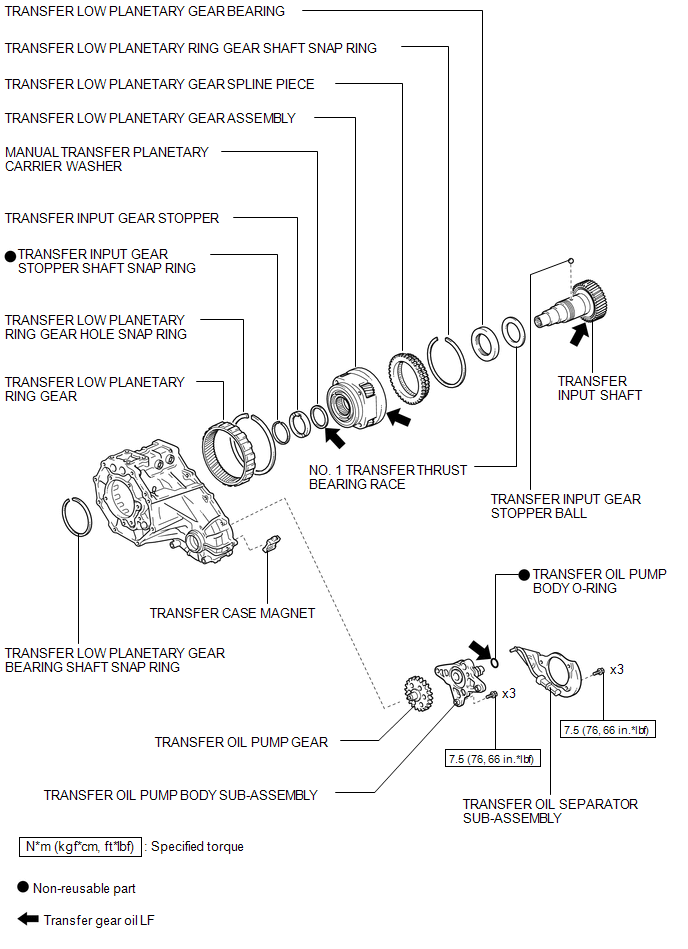

Fig 6: Transfer Assembly Replacement Components (6 Of 8)

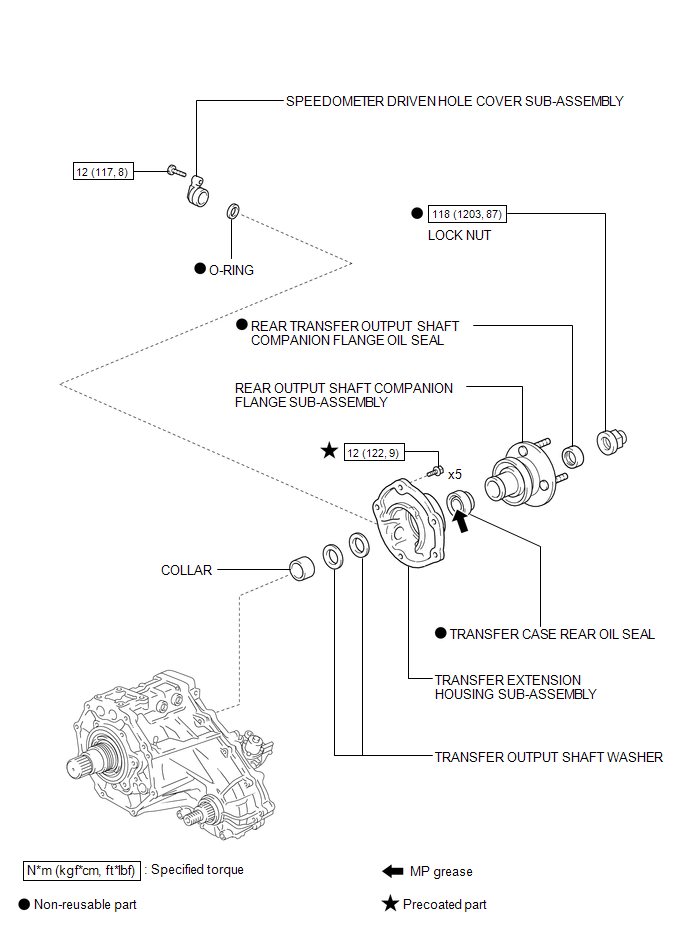

Fig 7: Transfer Assembly Replacement Components (7 Of 8)

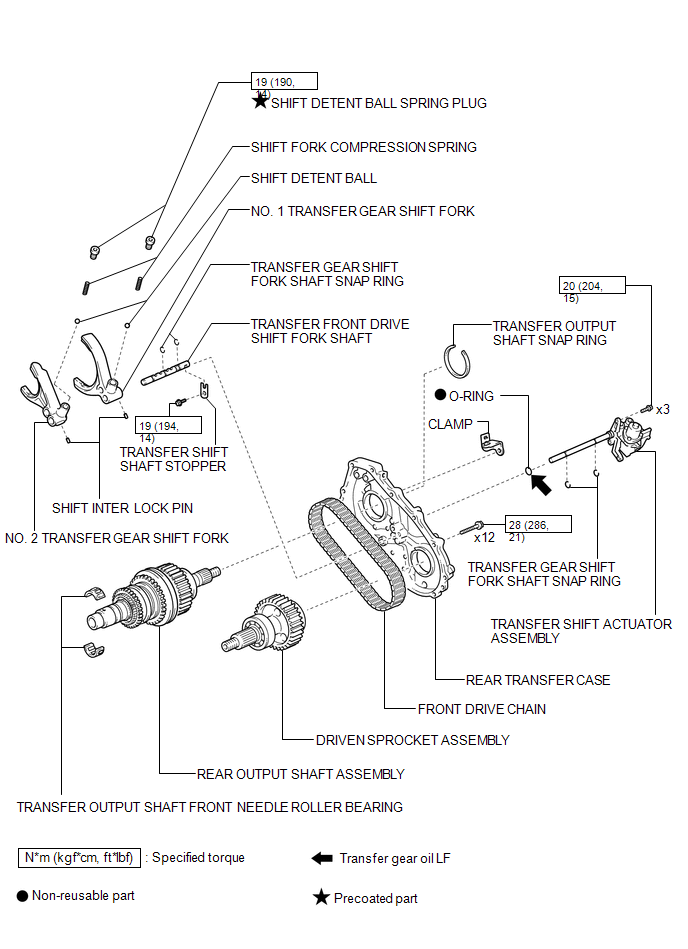

Fig 8: Transfer Assembly Replacement Components (8 Of 8)
