Replacement [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN TRANSFER OIL

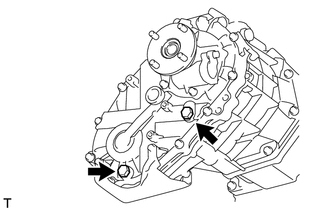

    GTY229975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the filler plug and gasket.
    2. Remove the drain plug and gasket, and drain the transfer oil.
  2. ADD TRANSFER OIL

    See step  2
