Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER
    1. Remove the automatic transmission (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - ] ).

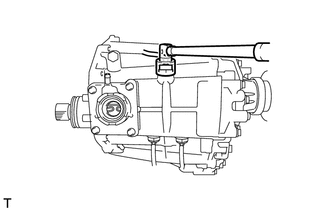

  2. REMOVE TRANSFER INDICATOR SWITCH (4WD POSITION)
    1. Using SST, remove the indicator switch and gasket.
      GTY229987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09817-16011

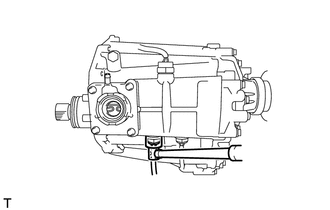

  3. REMOVE TRANSFER INDICATOR SWITCH (L4 POSITION)
    GTY229978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the indicator switch and gasket.
      • SST: 09817-16011

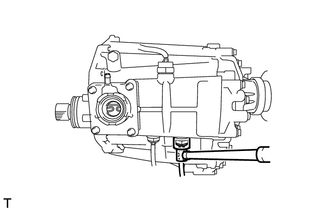

  4. REMOVE TRANSFER INDICATOR SWITCH (NEUTRAL POSITION)
    GTY236484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the indicator switch and gasket.
      • SST: 09817-16011
