Reassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

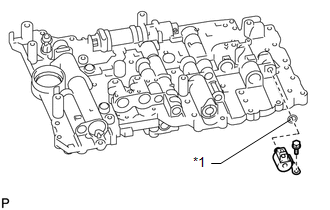

  1. INSTALL SHIFT SOLENOID VALVE S2
    1. Coat a new O-ring with ATF and install it to the solenoid valve.
      GTY736938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 New O-Ring
    2. Install the solenoid valve with the bolt.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

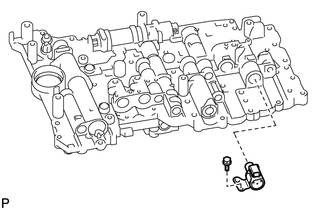

  2. INSTALL SHIFT SOLENOID VALVE S1
    GTY692271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid valve with the bolt.

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)

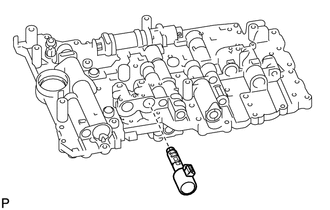

  3. INSTALL SHIFT SOLENOID VALVE SL1
    GTY692270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

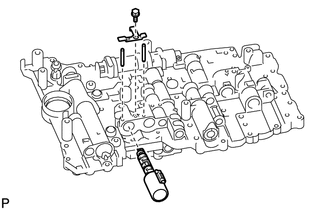

  4. INSTALL SHIFT SOLENOID VALVE SLT
    1. Install the solenoid valve.
      GTY692268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 straight pins and solenoid lock plate with the bolt.

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)

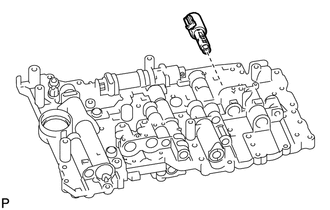

  5. INSTALL SHIFT SOLENOID VALVE SL2
    GTY692278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

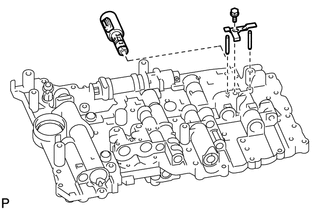

  6. INSTALL SHIFT SOLENOID VALVE SLU
    1. Install the solenoid valve.
      GTY692276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 2 straight pins and solenoid lock plate with the bolt.

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)

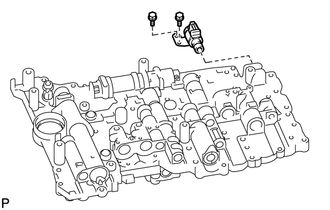

  7. INSTALL SHIFT SOLENOID VALVE SR
    1. Install the solenoid valve with the 2 bolts.
      GTY732174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N.m (65 kgf/cm, 57 in.lbf)
