Installation [08/2015 - ]: Procedure

1. Install the spring and check ball body.

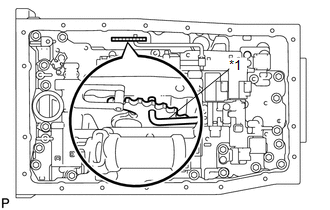

2. Insert the pin of the manual valve into the hole of the manual valve lever.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Pin

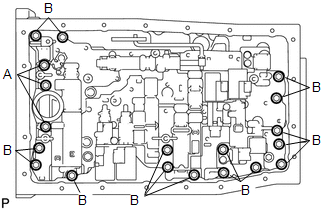

3. Install the transmission valve body assembly with the 19 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

   HINT:

   Each bolt length is indicated below.

   36 mm (1.42 in.) for bolt A

   25 mm (0.984 in.) for bolt B

4. Install the detent spring cover and detent spring with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

See step  2

See step  3

See step  4

1. Add automatic transmission fluid (Refer to ADJUSTMENT [08/2015 - 08/2019] , or refer to ADJUSTMENT [08/2019 - ] ).

1. Perform the RESET MEMORY procedures (A/T initialization) (Refer to INITIALIZATION [08/2015 - ] ).
