Components [08/2015 - ]

WARNING: This page is about a different variant/trim than selected.

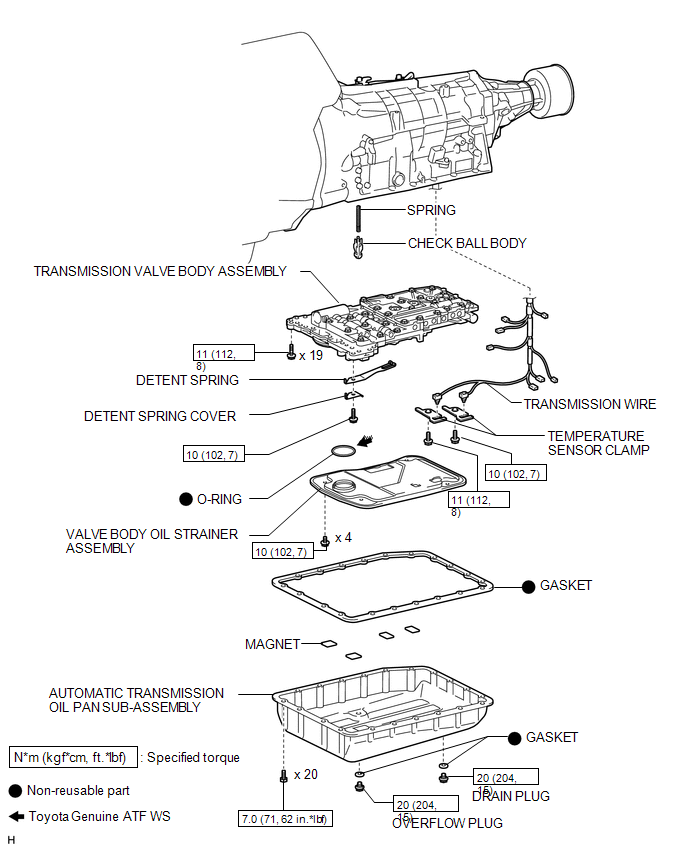

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY720363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

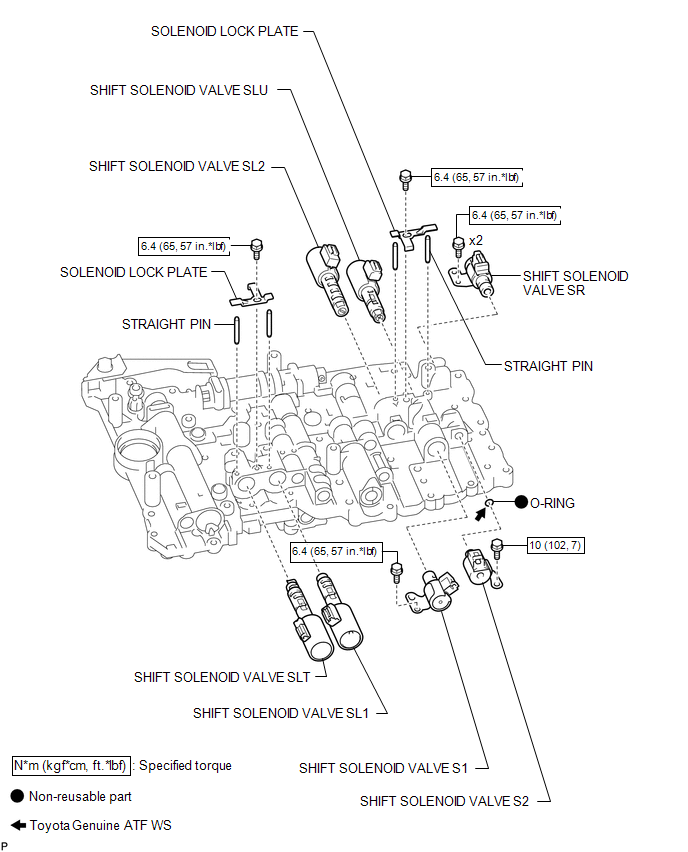

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY705034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
