Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN AUTOMATIC TRANSMISSION FLUID
    1. Remove the drain plug and gasket, and drain ATF.
    2. Install a new gasket and the drain plug.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  2. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
    1. Remove the 20 bolts, oil pan and gasket from the transmission.
      NOTE:

      Some fluid will remain in the oil pan. Remove all the pan bolts, and carefully remove the oil pan assembly.

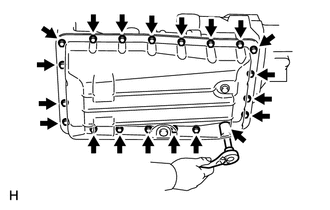

      GTY720491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Examine the particles in the pan.
      1. Remove the 4 magnets and use them to collect steel particles. Carefully inspect the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission.

        Steel (magnetic): bearing, gear and clutch plate wear

        Brass (non-magnetic): bush wear

  3. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
    1. Remove the 4 bolts and oil strainer.

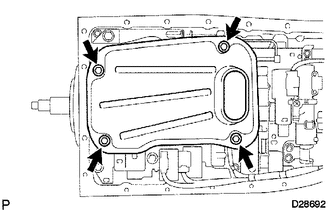

      GTY723979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful as some fluid may leak out of the oil strainer.

    2. Remove the O-ring from the oil strainer.
  4. DISCONNECT TRANSMISSION WIRE

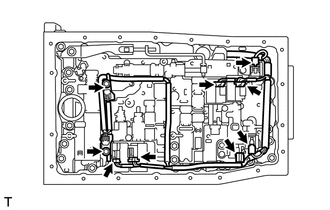

    GTY170469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and 2 temperature sensor clamps.
    2. Disconnect the 2 ATF temperature sensors.
    3. Disconnect the 7 connectors from the solenoid valves.
  5. REMOVE TRANSMISSION WIRE

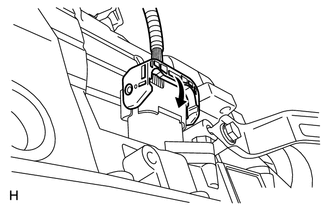

    GTY583302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the wire connector.
      1. Detach the claw, press down the lever, and then disconnect the transmission wire connector.
    2. Remove the bolt and pull out the transmission wire.

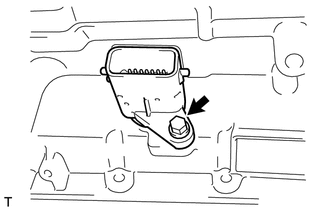

      GTY258904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
