Installation [08/2015 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL TRANSMISSION WIRE
- Coat a new O-ring with ATF and install it to the transmission wire connector.
- Install the transmission wire with the bolt.
Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)
- Connect the transmission wire connector.
HINT:

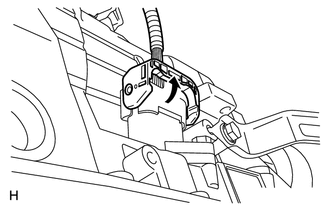

Push up the lever until the claw of the transmission wire connector makes a connection sound.
- CONNECT TRANSMISSION WIRE
- Connect the 7 connectors to the solenoid valves.
- Connect the 2 ATF temperature sensors with the 2 clamps and 2 bolts.
for bolt A
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
for bolt B
Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

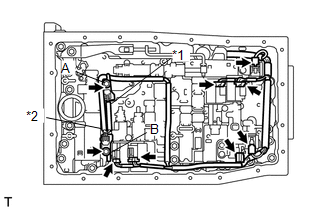

TEXT IN ILLUSTRATION*1 Orange *2 Blue HINT:
Each bolt length is indicated below.
12 mm (0.472 in.) for bolt A
36 mm (1.41 in.) for bolt B
- Connect the 7 connectors to the solenoid valves.
- INSTALL VALVE BODY OIL STRAINER ASSEMBLY
- Coat a new O-ring with ATF and install it to the oil strainer.
- Install the oil strainer with the 4 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY NOTE:
Remove the gasket and be careful not to spill oil on the contacting surfaces of the transmission case and oil pan.
- Install a new gasket and the oil pan with the 20 bolts.
Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)
- Install a new gasket and the oil pan with the 20 bolts.
- ADD AUTOMATIC TRANSMISSION FLUID
- Add automatic transmission fluid (Refer to ADJUSTMENT [08/2015 - 08/2019] , or refer to ADJUSTMENT [08/2019 - ] ).
