Section 2 (Automatic Transmission System (A750E) - Service Information)
>>
Transmission Wire
>>
Components [08/2015 - ]
Components [08/2015 - ]
WARNING:
This page is about a different variant/trim than selected.

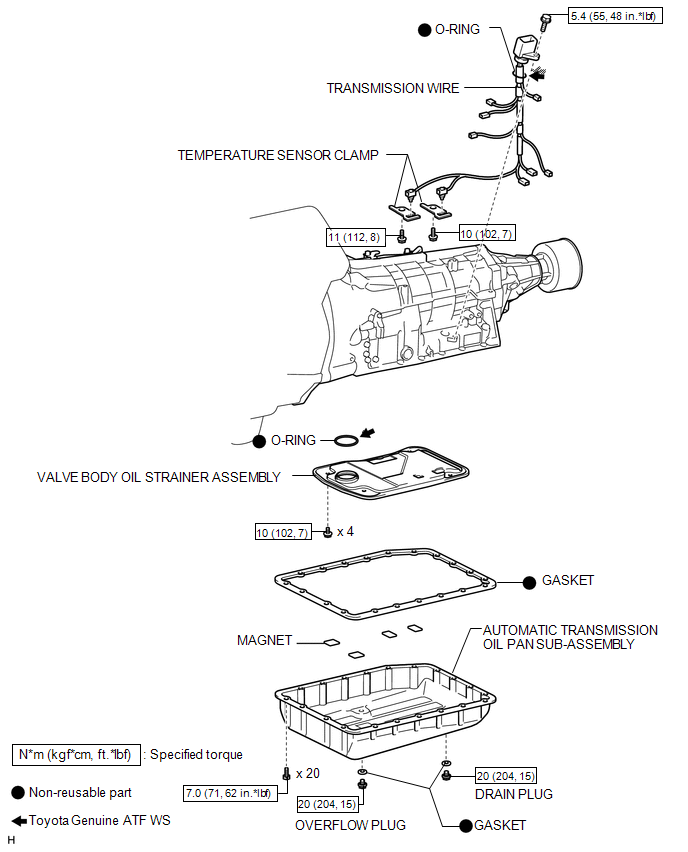

Fig 1: Transmission Wire Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
