Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE CONSOLE BOX ASSEMBLY
    1. Remove the console box assembly (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - ] ).
  2. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Disconnect the transmission control cable end from the shift lever.
      GTY650657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Rotate the socket counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.
      GTY650655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not over-rotate the nut as it will come off the internal spring and the transmission control cable will not be reusable.

    4. Remove the nut and clip, and disconnect the transmission control cable assembly from the automatic transmission.
      GTY738326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the end of the transmission control cable from the shift lever assembly.

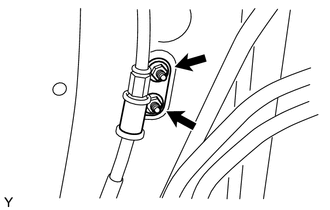

    6. Remove the 2 nuts and disconnect the transmission control cable support.
      GTY713582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 nuts and detach the 3 claws, and then pull out the transmission control cable.
      GTY725815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
