Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the rear console box (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - ] ).
  2. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.

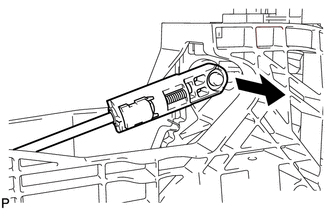

    2. Disconnect the transmission control cable end from the shift lever.
      GTY650657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

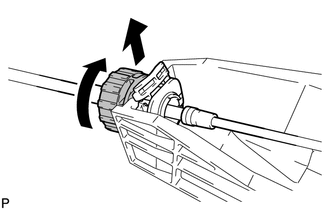

    3. Rotate the socket counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.
      GTY650655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not over-rotate the nut as it will come off the internal spring and the transmission control cable will not be reusable.

  3. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    GTY688393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

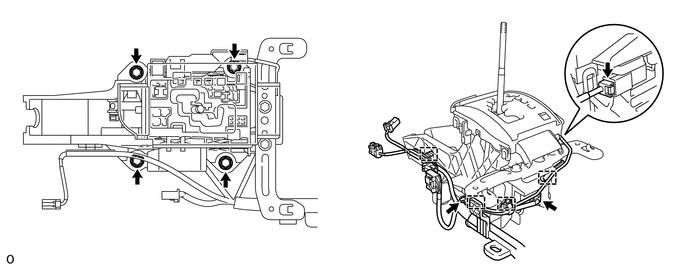

    1. Disconnect the 3 connectors and detach the 4 wire harness clamps.
    2. Remove the 4 bolts and transmission floor shift.
  4. REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET
    1. Remove the 2 screws and console box mounting bracket.
