Reassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
    1. Attach the 3 claws to install the shift lock control ECU to the transmission floor shift.
    2. Connect the shift lock solenoid connector to the shift lock control ECU.
  2. INSTALL NO. 2 POSITION INDICATOR SLIDE COVER
    1. Install the No. 2 position indicator slide cover to the position indicator slide cover.
  3. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install the position indicator slide cover to the position indicator housing.
  4. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY

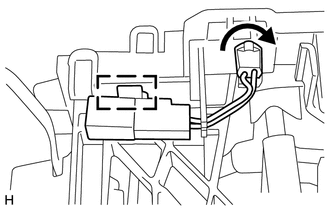

    GTY691363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the bulb and cap to the indicator light wire.
    2. Align the wire with the key part of the position indicator housing, and install the wire. Then rotate the wire clockwise until it locks.
    3. Attach the connector clamp to the position indicator housing.
  5. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
    1. Attach the 4 claws to install the position indicator housing to the transmission floor shift.
  6. INSTALL SHIFT LEVER CAP
