Installation [08/2015 - ]: Procedure

1. Install the console box mounting bracket with the 2 screws.

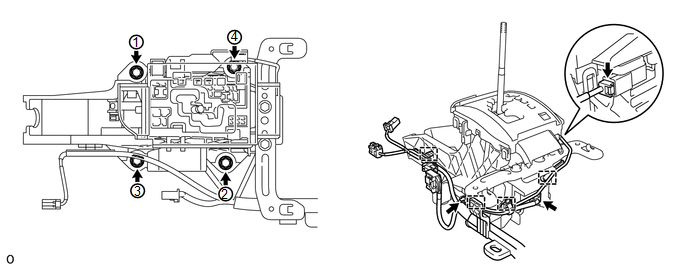

Fig 1: Shift Lever Assembly Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transmission floor shift with the 4 bolts tighten the bolt in the order shown in the illustration.

   Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)

2. Connect the 3 connectors and attach the 4 wire harness clamps.

1. Turn the socket of the transmission control cable 180° counterclockwise. While holding the socket in place, push in the lock piece until the lock piece clicks twice.
   NOTE:

   Do not over-rotate the socket as it will come off the internal spring and the transmission control cable will not be reusable.

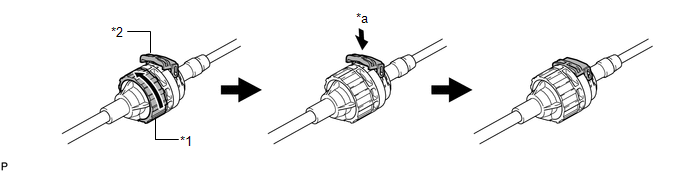

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Socket	*2	Lock Piece
   *a	Push in	-	-

   HINT:

   If the lock piece cannot be pushed in, slightly turn the socket clockwise and then push in the lock piece again.

2. Install the outer part of the transmission control cable to the shift lever retainer. Check that the socket and lock piece are positioned at original position.

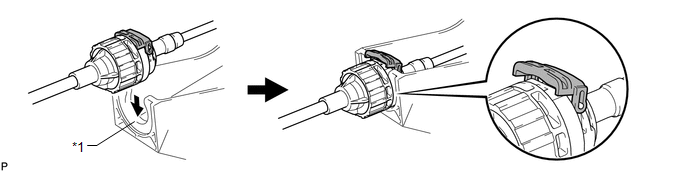

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Shift Lever Retainer

   -

   -

3. Slide the slider in the direction shown in the illustration and pull out the lock piece.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Slider
   *2	Lock Piece

4. Connect the end of the cable to the shift lever.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Make sure that the lock piece is pulled up.
   • Push on the end of the cable all the way to the base of the pin.

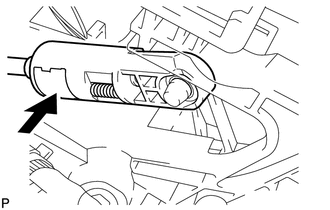

5. Push the lock piece into the adjuster case and lock it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Make sure that the lock piece is completely locked by the slider.

See step  1

1. Install the rear console box (Refer to INSTALLATION [08/2015 - 08/2019] , or refer to INSTALLATION [08/2019 - ] ).
