Disassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER CAP
  2. REMOVE POSITION INDICATOR HOUSING ASSEMBLY
    1. Detach the 4 claws and remove the floor shift position indicator housing.

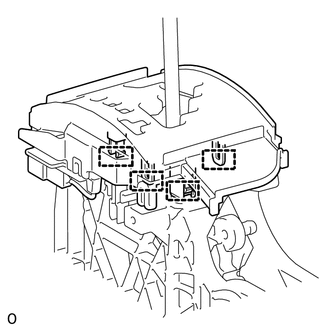

      GTY717672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
    1. Detach the wire connector clamp from the position indicator housing.

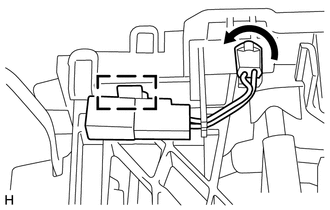

      GTY691347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the indicator light wire socket counterclockwise to align the key part and remove the wire.
    3. Remove the cap and bulb from the indicator light wire socket.
      GTY738367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover together with No. 2 position indicator slide cover from the position indicator housing.

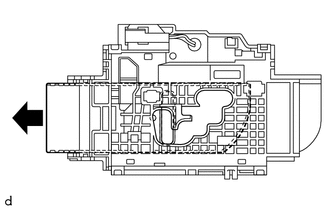

      GTY975345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 POSITION INDICATOR SLIDE COVER
    1. Remove the No. 2 position indicator slide cover from the position indicator slide cover.
      GTY974890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
    1. Disconnect the shift lock solenoid connector from the shift lock control ECU.
    2. Detach the 3 claws and remove the shift lock control ECU from the transmission floor shift.

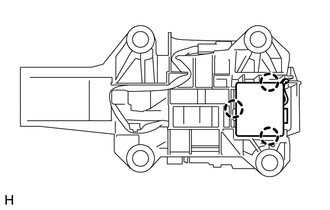

      GTY281098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
