Removal [08/2015 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
- Disconnect the switch connector.

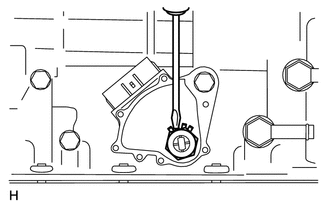

- Using a screwdriver, bend the tabs of the lock washer.

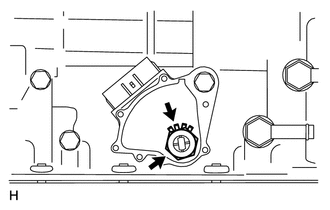

- Remove the lock nut and lock washer.

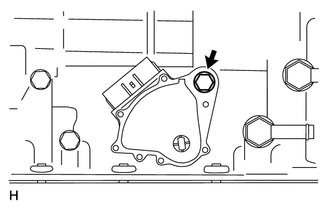

- Remove the bolt and switch.
HINT:
Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.
