Adjustment [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Loosen the bolt of the park/neutral position switch and move the shift lever to the N position.

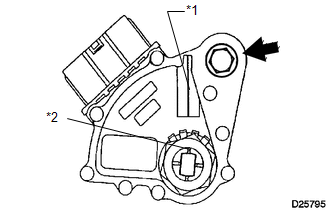

      GTY729669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the neutral basic line with the switch groove.
    3. Hold the switch in position and tighten the bolt.

      Torque: 13 N.m (130 kgf/cm, 9 ft.lbf)

      TEXT IN ILLUSTRATION

      *1 Neutral Basic Line
      *2 Groove
    4. After the adjustment, perform the on-vehicle inspection (Refer to ON-VEHICLE INSPECTION [08/2015 - ] ).
