INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY

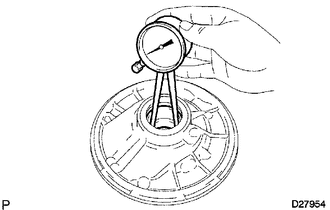

Using a dial indicator, measure the inside diameter of the oil pump body bush.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum inside diameter

38.188 mm (1.50 in.)

If the inside diameter is more than the maximum, replace the oil pump body sub-assembly.

INSPECT STATOR SHAFT ASSEMBLY

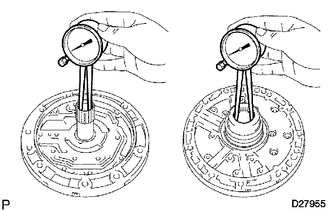

Using a dial indicator, measure the inside diameter of the stator shaft bush.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Maximum inside diameter

Front side

21.577 mm (0.849 in.)

Rear side

32.08 mm (1.26 in.)

If the inside diameter is more than the maximum, replace the stator shaft assembly.

INSPECT CLEARANCE OF OIL PUMP ASSEMBLY

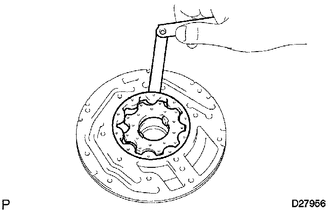

Push the driven gear to one side of the body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a feeler gauge, measure the body clearance.
Standard body clearance

0.10 to 0.17 mm (0.00394 to 0.00669 in.)

Maximum body clearance

0.17 mm (0.00669 in.)
1. If the body clearance is more than the maximum, replace the drive gear, driven gear or pump body assembly. Replace the part or parts determined to be the most likely cause of the problem.

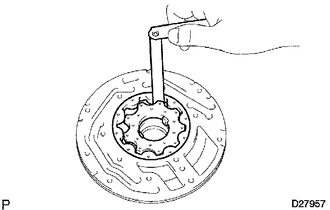

Using a feeler gauge, measure the tip clearance between the driven gear teeth and drive gear teeth.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard tip clearance

0.070 to 0.150 mm (0.00276 to 0.00591 in.)

Maximum tip clearance

0.150 mm (0.00591 in.)

If the tip clearance is more than the maximum, replace the drive gear, driven gear or pump body assembly. Replace the part or parts determined to be the most likely cause of the problem.

Using a steel straightedge and feeler gauge, measure the side clearance of both gears.

Standard side clearance

0.02 to 0.05 mm (0.000787 to 0.00197 in.)

Maximum side clearance

0.05 mm (0.00197 in.)

If the side clearance is more than the maximum, replace the drive gear, driven gear or pump body assembly. Replace the part or parts determined to be the most likely cause of the problem.

HINT:

There are 5 different drive and driven gear thicknesses.

Drive and Driven Gear Thickness

Mark	Thickness
0	10.74 to 10.749 mm (0.42283 to 0.42319 in.)
1	10.75 to 10.759 mm (0.42323 to 0.42358 in.)
2	10.76 to 10.77 mm (0.42362 to 0.42401 in.)
3	10.771 to 10.78 mm (0.42405 to 0.42441 in.)
4	10.781 to 10.79 mm (0.42445 to 0.42480 in.)

INSPECT FRONT OIL PUMP DRIVE GEAR ROTATION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

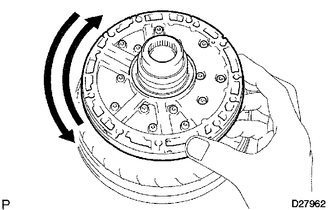

1. Place the oil pump body on the torque converter clutch.
2. Check that the drive gear rotates smoothly.
3. Remove the oil pump assembly from the torque converter clutch.
