Disassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AUTOMATIC TRANSMISSION CASE O-RING
    1. Remove the O-ring from the oil pump assembly.
      GTY467012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

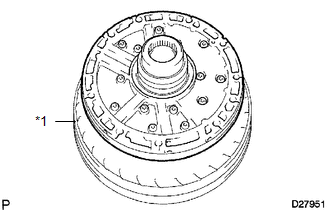

  2. FIX OIL PUMP ASSEMBLY
    1. Place the oil pump body on the torque converter clutch.
      GTY417055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Torque Converter Clutch

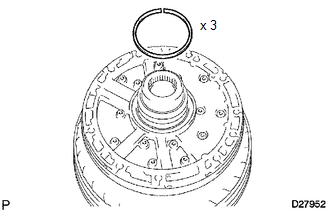

  3. REMOVE CLUTCH DRUM OIL SEAL RING
    1. Remove the 3 oil seal rings.
      GTY739583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

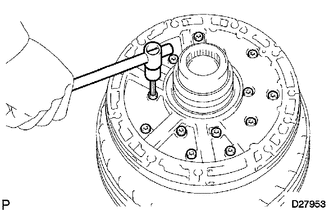

  4. REMOVE STATOR SHAFT ASSEMBLY
    1. Remove the 14 bolts and stator shaft from the oil pump body.
      GTY578205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT OIL PUMP BODY O-RING
    1. Remove the O-ring from the oil pump body.
      GTY578198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump body from the torque converter clutch.
  6. INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY

    See step  1

  7. INSPECT STATOR SHAFT ASSEMBLY

    See step  2

  8. INSPECT CLEARANCE OF OIL PUMP ASSEMBLY

    See step  3

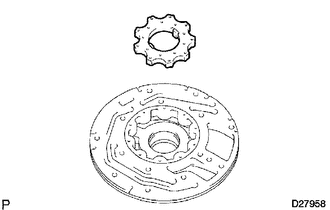

  9. REMOVE FRONT OIL PUMP DRIVE GEAR
    GTY578200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

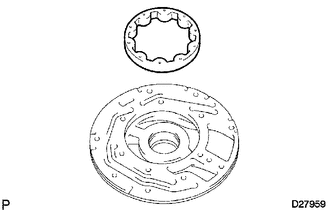

  10. REMOVE FRONT OIL PUMP DRIVEN GEAR
    GTY606381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

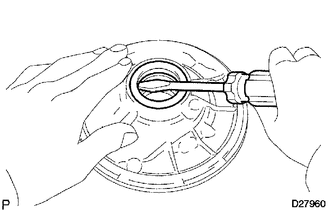

  11. REMOVE FRONT OIL PUMP OIL SEAL
    1. Using a screwdriver, pry out the oil seal.
      GTY100200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the bushing or oil pump body.
