Components [08/2015 - ]

WARNING: This page is about a different variant/trim than selected.

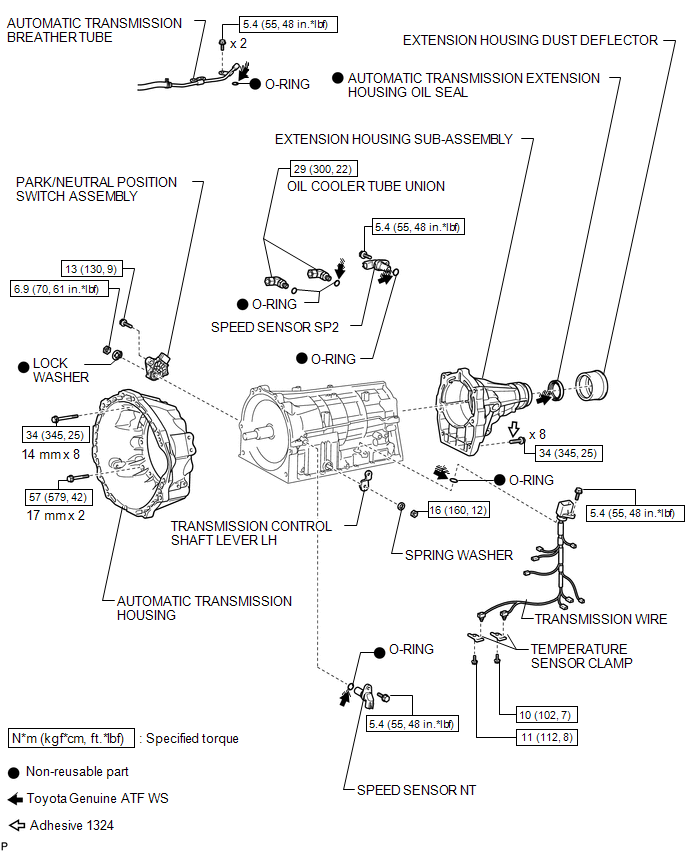

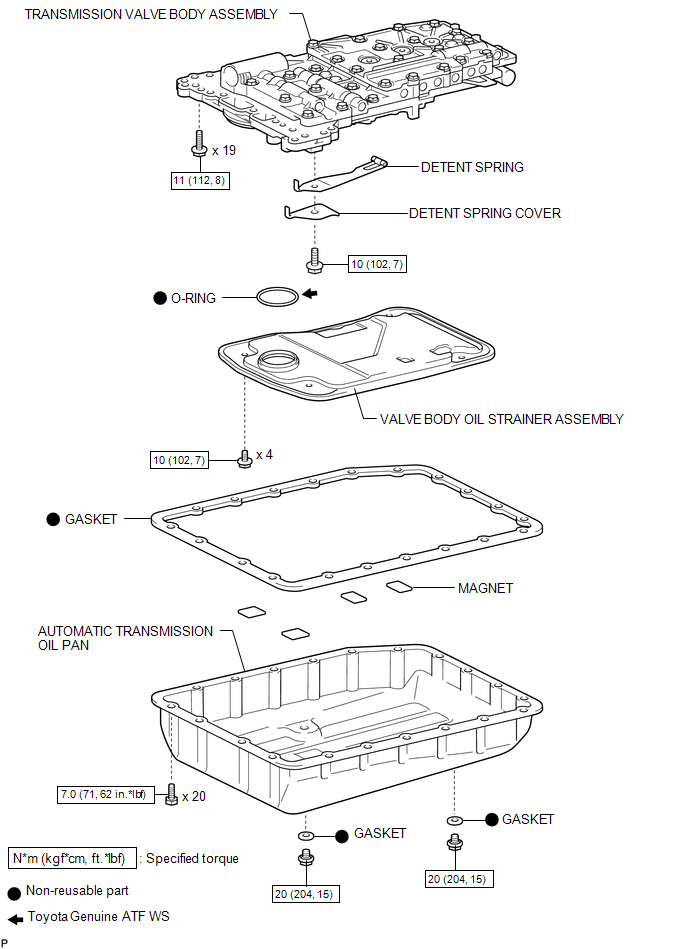

Fig 1: Automatic Transmission Unit Replacement Components With Torque Specifications (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

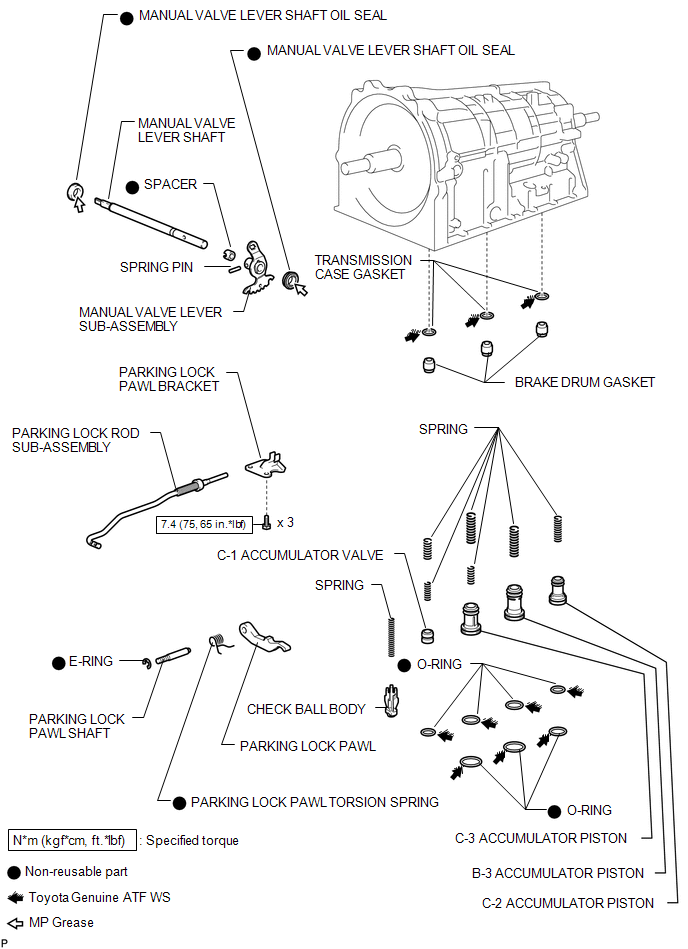

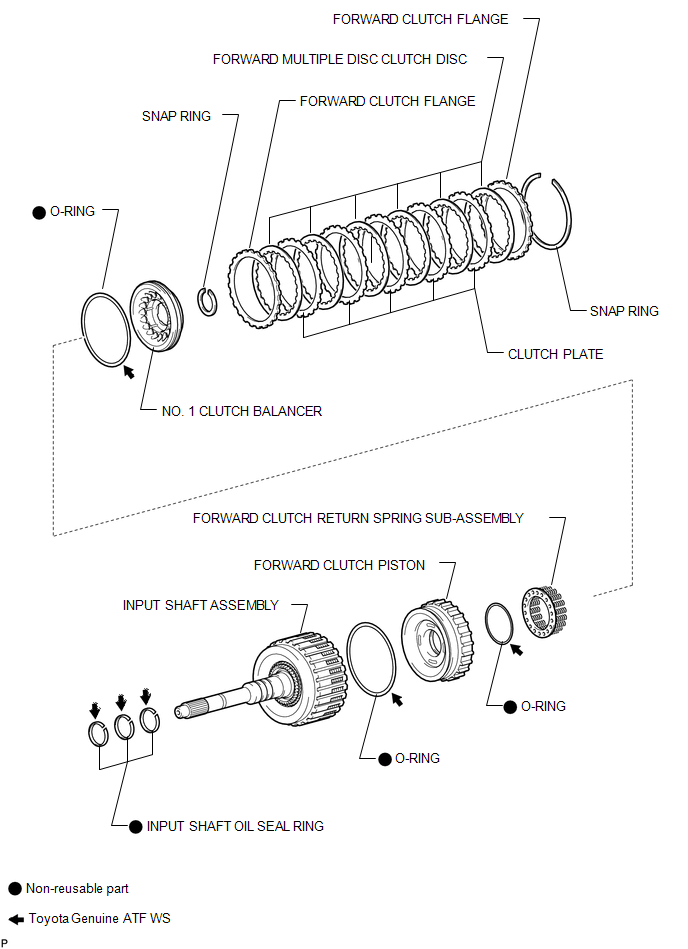

Fig 2: Automatic Transmission Unit Replacement Components With Torque Specifications (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

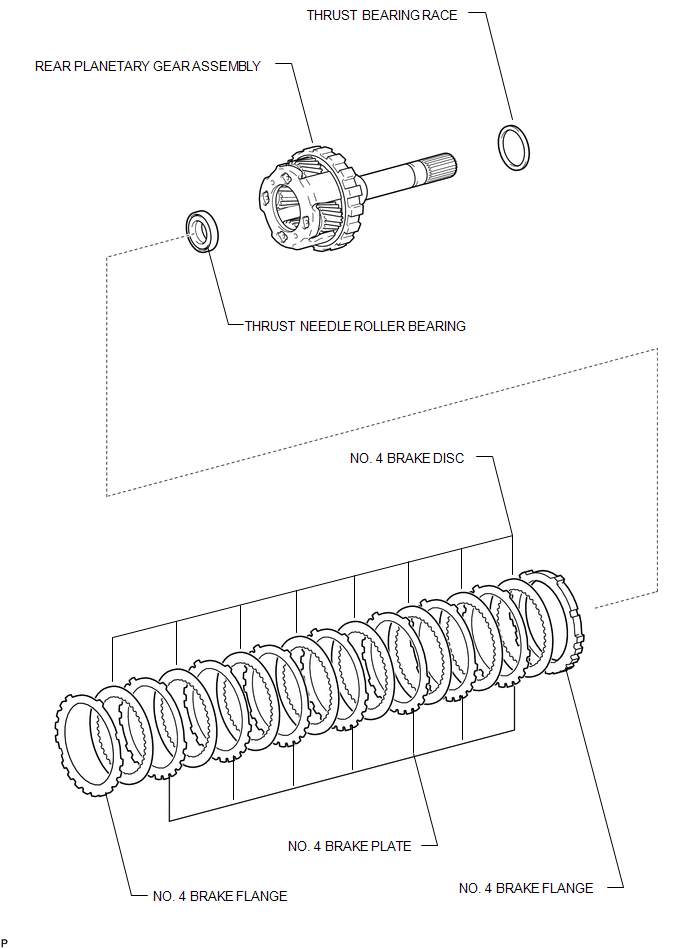

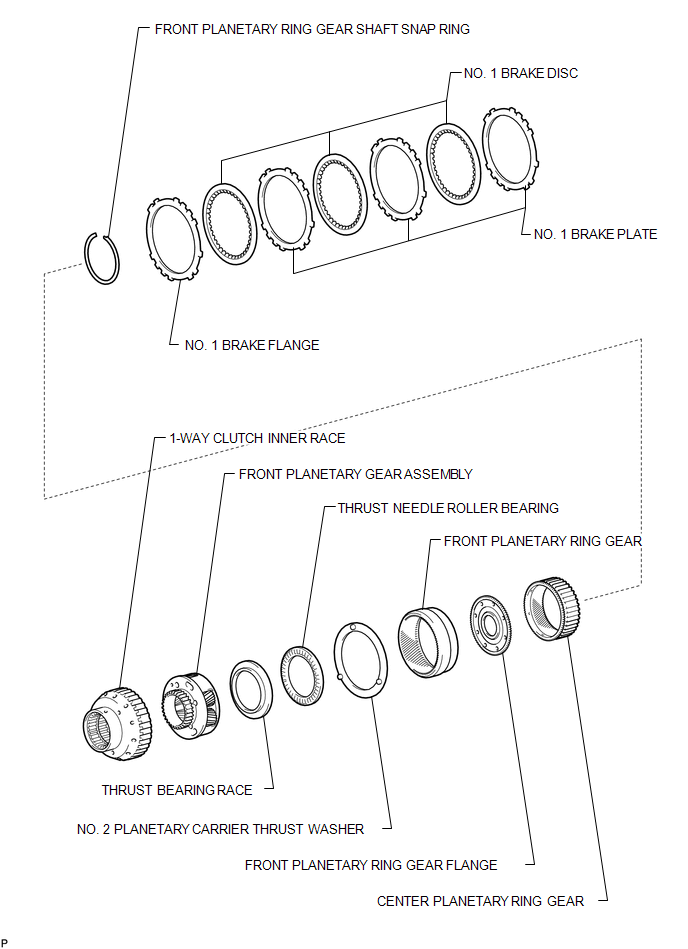

Fig 3: Automatic Transmission Unit Replacement Components With Torque Specifications (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

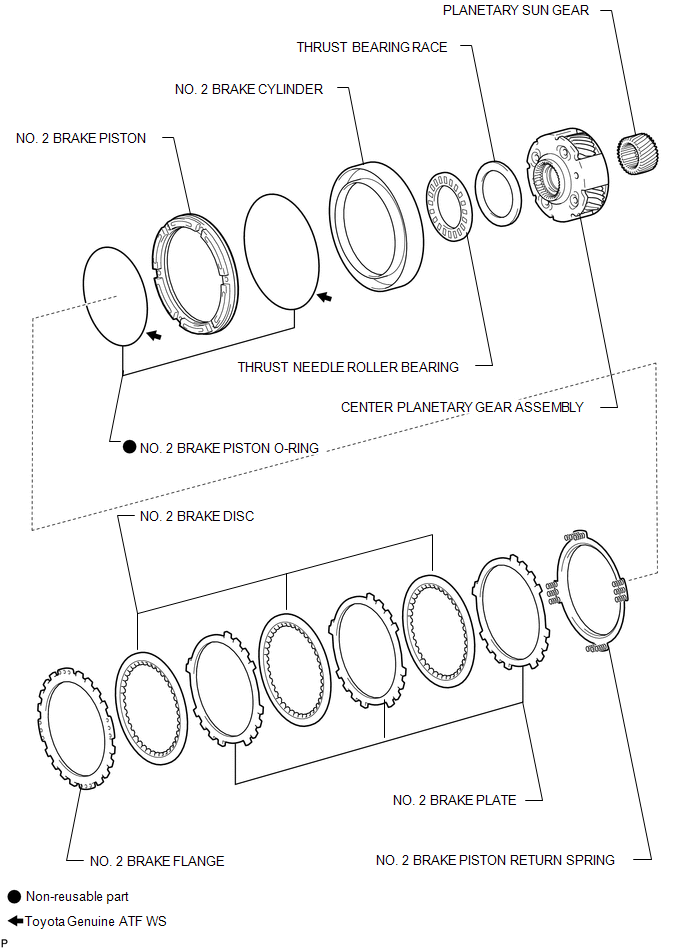

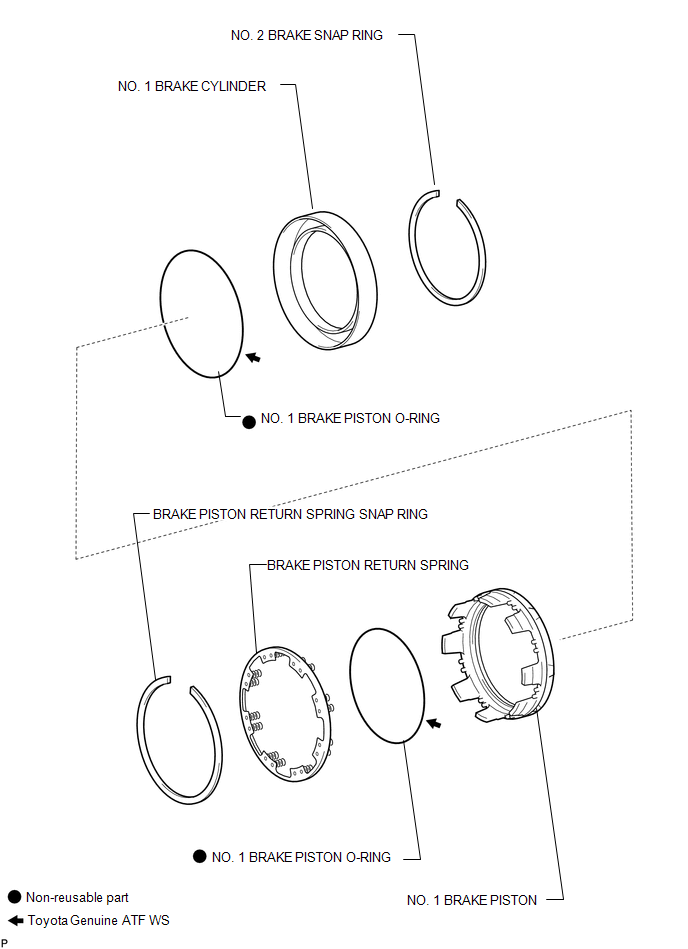

Fig 4: Automatic Transmission Unit Replacement Components With Torque Specifications (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

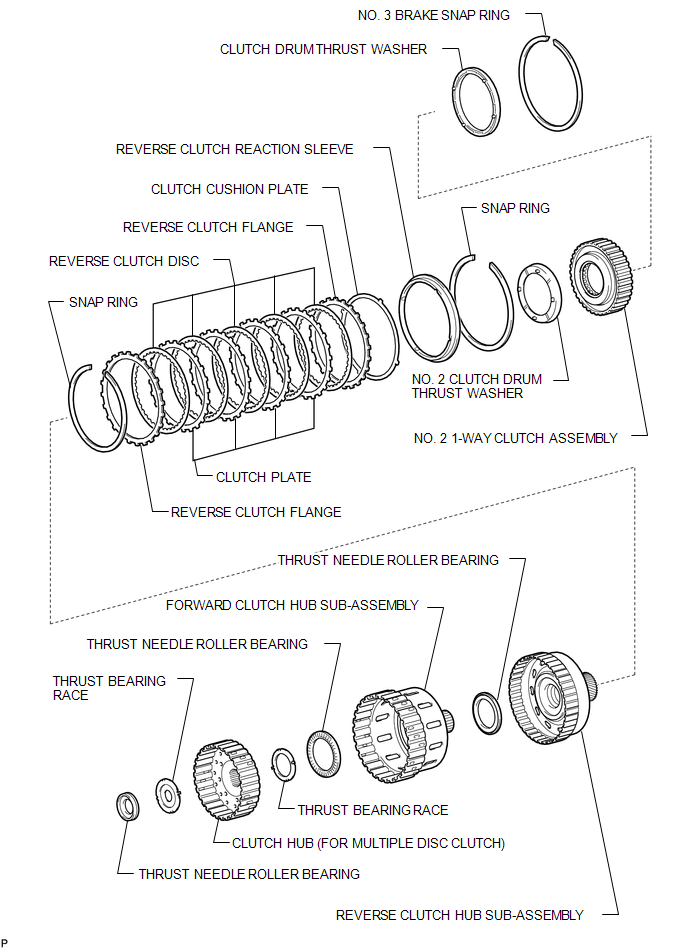

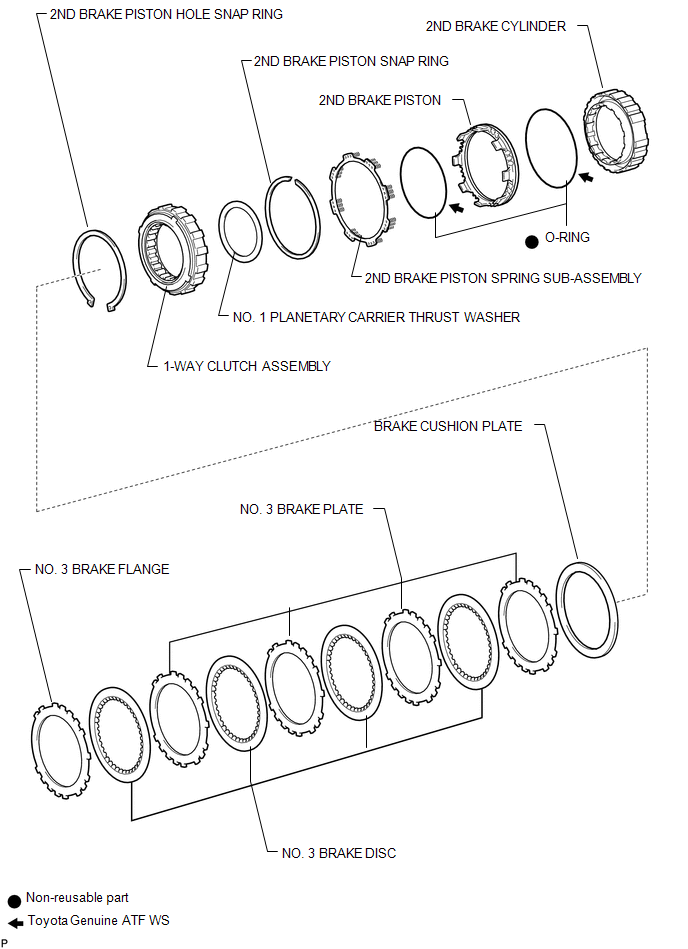

Fig 5: Automatic Transmission Unit Replacement Components (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

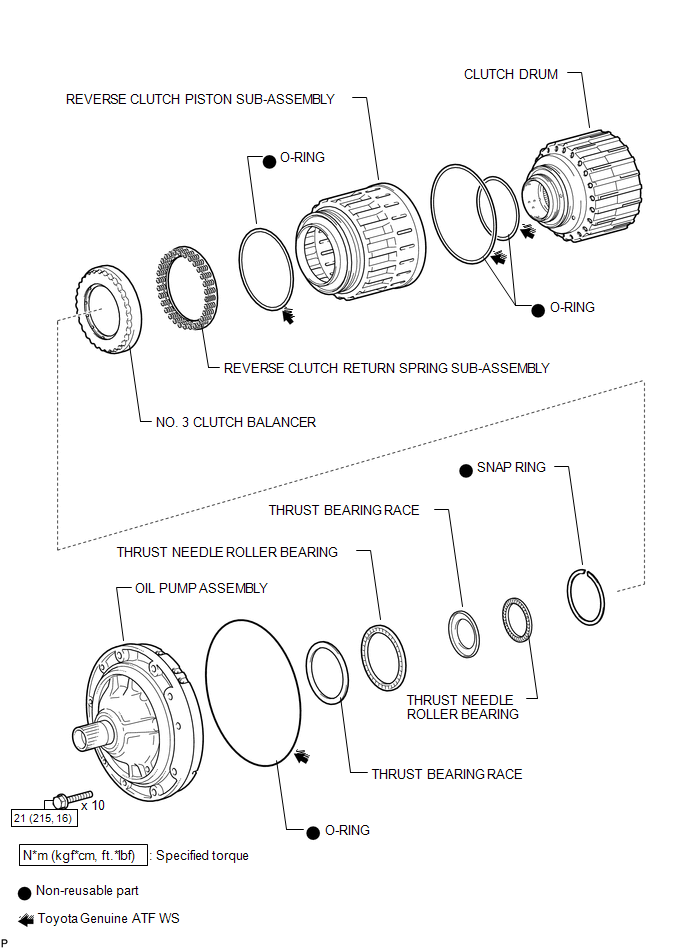

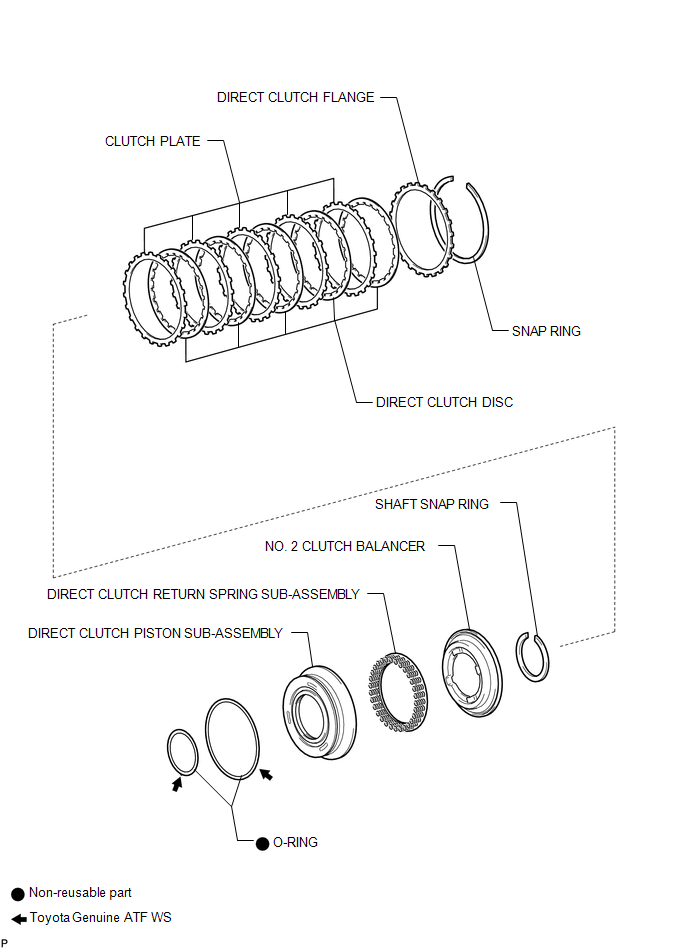

Fig 6: Automatic Transmission Unit Replacement Components (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

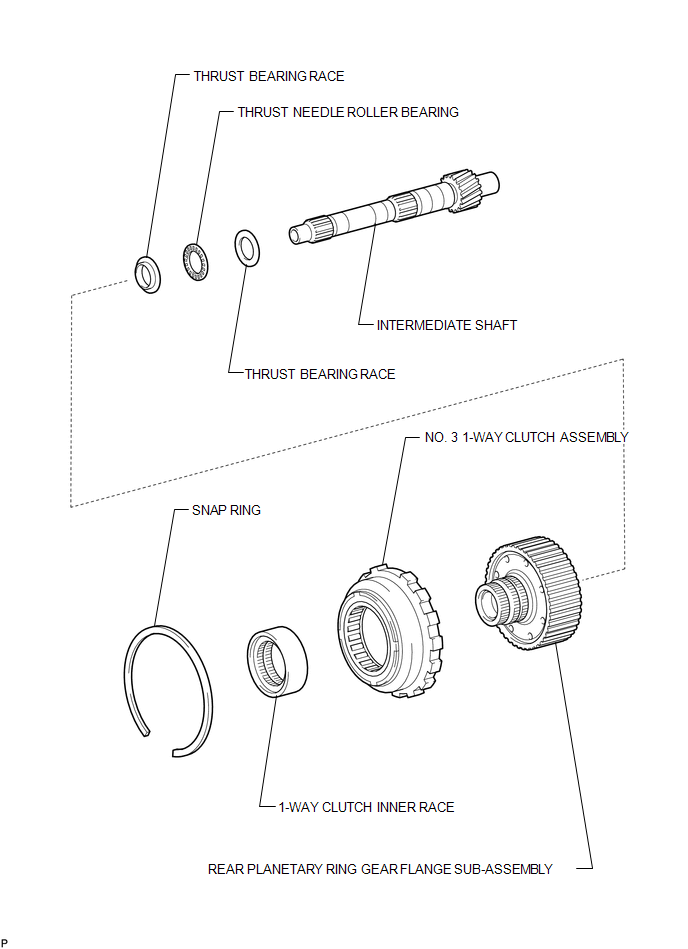

Fig 7: Automatic Transmission Unit Replacement Components (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

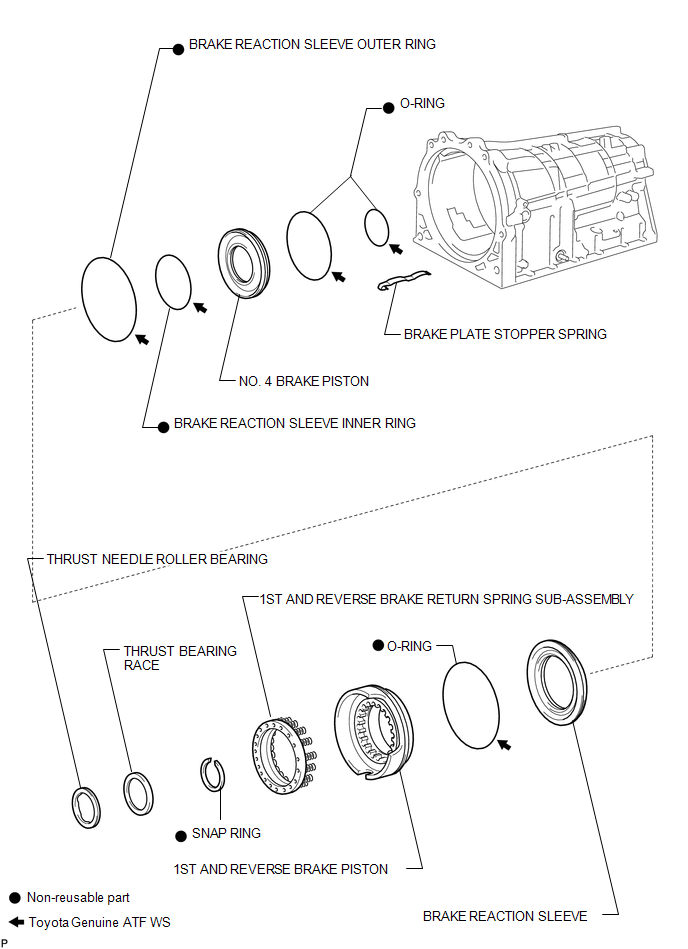

Fig 8: Automatic Transmission Unit Replacement Components (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Automatic Transmission Unit Replacement Components (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Automatic Transmission Unit Replacement Components (10 Of 14)

Fig 11: Automatic Transmission Unit Replacement Components (11 Of 14)

Fig 12: Automatic Transmission Unit Replacement Components (12 Of 14)

Fig 13: Automatic Transmission Unit Replacement Components (13 Of 14)

Fig 14: Automatic Transmission Unit Replacement Components (14 Of 14)
