Parts Location [08/2015 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

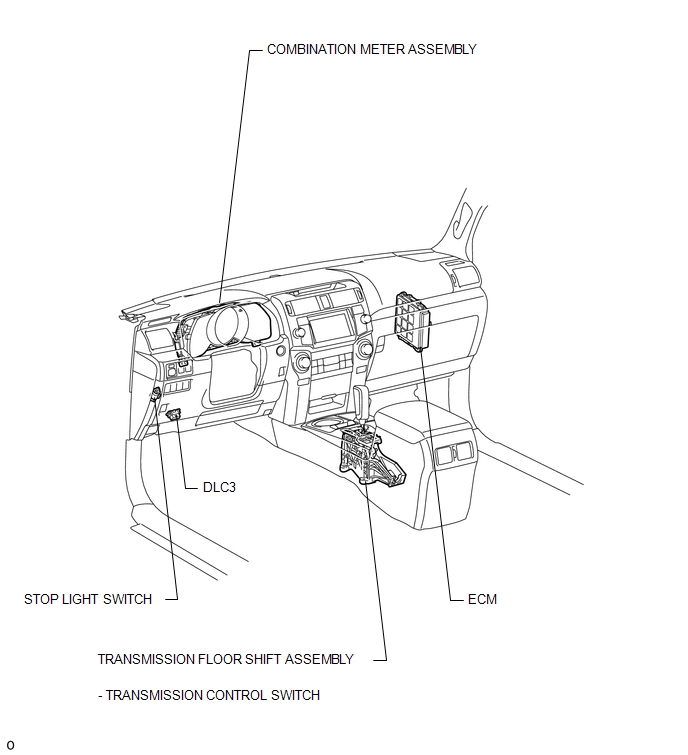

GTY222255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

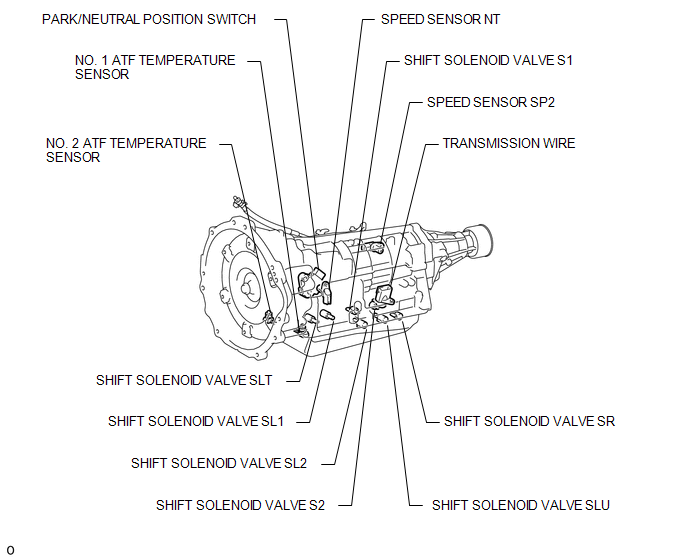

GTY236275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
