Replacement [08/2019 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN TRANSFER OIL

NOTE:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

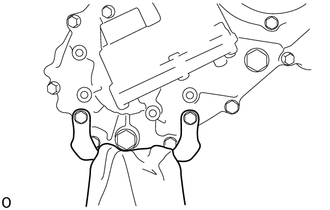

Before proceeding with work, wedge a cloth or similar item into the transfer case lower protector to prevent transfer oil from sticking to the transfer case protector cushion.

Remove the filler plug and gasket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the drain plug and gasket to drain the transfer oil.

Install a new gasket to the drain plug, and then install the drain plug.

Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)

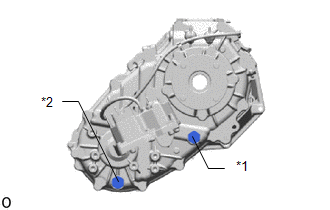

TEXT IN ILLUSTRATION

*1	Filler Plug
*2	Drain Plug

ADD TRANSFER OIL

Add oil so that the oil level is between 0 to 5.0 mm (0 to 0.196 in.) from the bottom lip of the filler plug hole.

TEXT IN ILLUSTRATION

*a	0 to 5.0 mm

Oil grade

Toyota Genuine Transfer Gear Oil LF or Equivalent

Viscosity

SAE 75W

Standard capacity

1.0 liters (1.1 US qts, 0.9 Imp. qts)

NOTE:

Too much or too little oil will lead to transfer problems.

Install a new gasket to the filler plug, and then install the filler plug.
Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)
NOTE:
- When adding transfer oil, make sure the vehicle is level.
- An excessively large or small amount of oil may cause problems.
- After adding oil, drive the vehicle and recheck the oil level.
Inspect for transfer oil leaks.
