On-Vehicle Inspection [08/2019 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK TRANSFER OIL

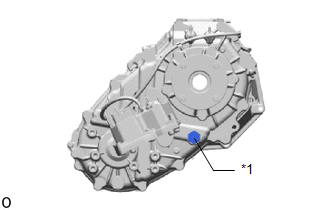

    1. Remove the filler plug and gasket.
      GTY872431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Filler Plug
    2. Check that the oil level is between 0 to 5.0 mm (0 to 0.196 in.) from the bottom lip of the filler plug hole.
      GTY861652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, add transfer oil.

      TEXT IN ILLUSTRATION

      *a 0 to 5.0 mm

      Oil grade

      Toyota Genuine Transfer Gear Oil LF or Equivalent

      Viscosity

      SAE 75W

      NOTE:

      Too much or too little oil will lead to transfer problems.

    3. When the oil level is too low, check for oil leakage.
    4. Install a new gasket to the filler plug, and then install the filler plug.

      Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)
