Components [08/2019 - ]

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

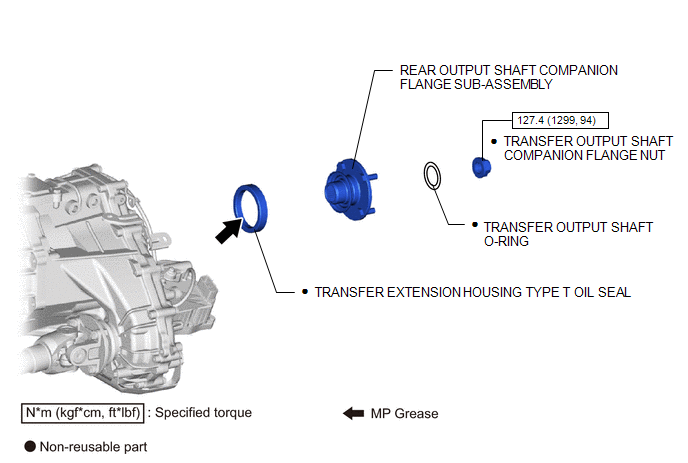

Fig 1: Transfer Case Rear Oil Seal Replacement Components With Torque Specifications
GTY851043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
