WARNING:
- To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
- Be sure to perform this procedure with several people as the transfer assembly is very heavy.
- Be sure to follow the procedure described in the repair information

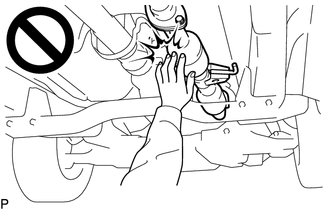

, or the transmission jack may suddenly drop or a part may fall.TEXT IN ILLUSTRATION
*a Object Exceeding Weight Limit of Transmission Jack
NOTE:
Change the vehicle to H2 before removing the transfer assembly.
If the vehicle cannot be changed to H2, since the new transfer assembly is set to H2, connect all the connectors to the vehicle side wire harnesses to set the new transfer assembly to the drive state of the vehicle before installing the new transfer assembly.
