Disassembly [08/2019 - ]: Procedure

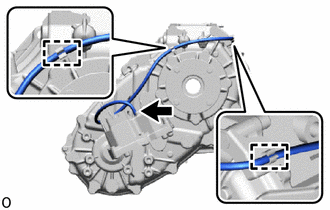

- REMOVE ACTUATOR BREATHER HOSE

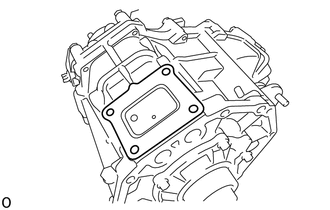

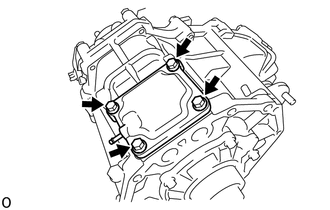

- REMOVE TRANSFER CASE COVER SUB-ASSEMBLY
- REMOVE OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY (for Front Side)
- Using a chisel and hammer, loosen the staked part of the transfer output shaft companion flange nut.NOTE:
- Completely loosen the staked part of the lock nut when removing it.
- Do not damage the threads of the driven sprocket.

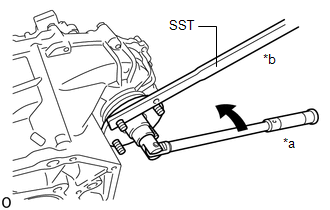

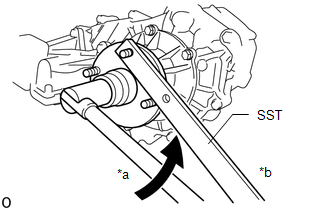

- Using SST to hold the output shaft companion flange sub-assembly, remove the transfer output shaft companion flange nut.
- SST: 09330-00021

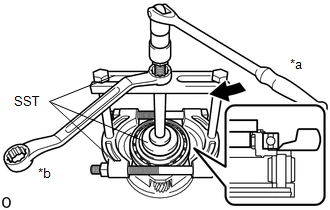

TEXT IN ILLUSTRATION*a Turn *b Hold - Using SST, remove the output shaft companion flange sub-assembly.
- SST: 09950-40011
- 09951-04020
- 09952-04010
- 09953-04030
- 09954-04010
- 09955-04031
- 09957-04010
- 09958-04011
NOTE:Apply a lubricant to the threads and end of SST.
TEXT IN ILLUSTRATION*a Turn *b Hold - SST: 09950-40011
- Using SST and hammer, remove the transfer output shaft companion flange oil seal.
- SST: 09950-60011
- 09951-00220
- 09951-00290
- 09952-06010
- SST: 09950-70010
- 09951-07100
NOTE:Be careful not to damage the transfer output shaft companion flange oil seal and output shaft companion flange sub-assembly contact surfaces.
- SST: 09950-60011
- Using a chisel and hammer, loosen the staked part of the transfer output shaft companion flange nut.
- REMOVE TRANSFER CASE OIL SEAL
See step 7
- REMOVE OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY (for Rear Side)
- Using a chisel and hammer, loosen the staked part of the transfer output shaft companion flange nut.NOTE:
- Completely loosen the staked part of the transfer output shaft companion flange nut when removing it.
- Do not damage the threads of the rear transfer output shaft.

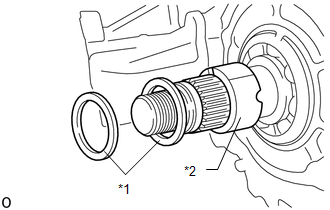

- Using SST to hold the output shaft companion flange sub-assembly, remove the transfer output shaft companion flange nut and transfer output shaft O-ring.
- SST: 09330-00021

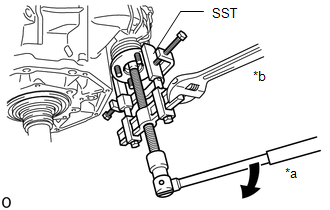

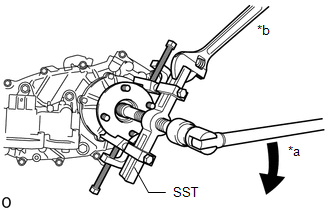

TEXT IN ILLUSTRATION*a Turn *b Hold - Using SST, remove the output shaft companion flange sub-assembly.
- SST: 09950-40011
- 09951-04020
- 09952-04010
- 09953-04030
- 09954-04010
- 09955-04031
- 09957-04010
- 09958-04011
NOTE:Apply a lubricant to the threads and end of SST.
TEXT IN ILLUSTRATION*a Turn *b Hold - SST: 09950-40011
- Using a chisel and hammer, loosen the staked part of the transfer output shaft companion flange nut.
- REMOVE TRANSFER EXTENSION HOUSING TYPE T OIL SEAL
See step 4
- REMOVE TRANSFER EXTENSION HOUSING
- REMOVE TRANSFER OUTPUT SHAFT WASHER
- REMOVE NO. 1 TRANSFER CASE PLUG

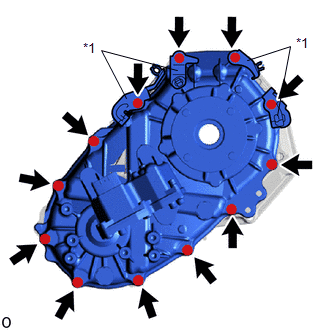

- REMOVE REAR TRANSFER CASE
- REMOVE TRANSFER OIL SEPARATOR SUB-ASSEMBLY
- REMOVE TRANSFER OIL PUMP BODY SUB-ASSEMBLY

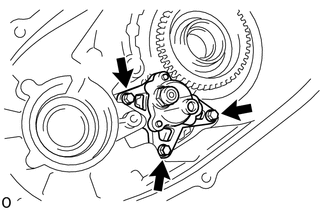

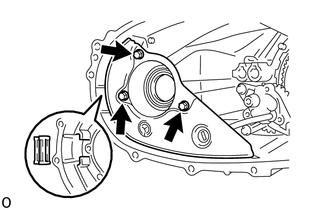

- Remove the 3 bolts and transfer oil pump body sub-assembly.
- Using a screwdriver, remove the transfer oil pump body O-ring.TEXT IN ILLUSTRATION
*a Protective Tape NOTE:Be careful not to damage the transfer oil pump body sub-assembly.
HINT:
Tape the screwdriver tip before use.

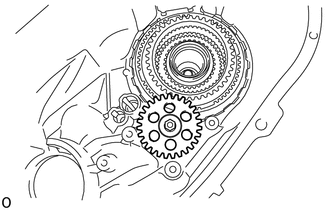

- Remove the transfer oil pump gear.
- Remove the 3 bolts and transfer oil pump body sub-assembly.

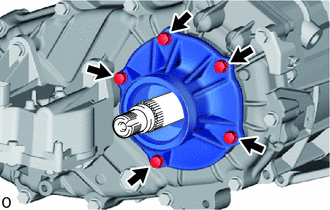

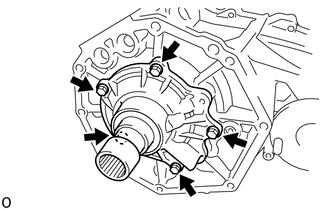

- REMOVE TRANSFER FRONT BEARING RETAINER SUB-ASSEMBLY
- REMOVE TRANSFER FRONT BEARING TYPE T OIL SEAL

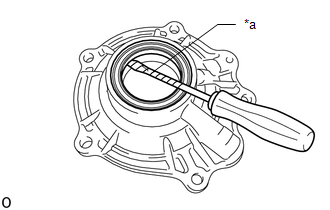

- Using a screwdriver and hammer, remove the transfer front bearing type T oil seal.TEXT IN ILLUSTRATION
*a Protective Tape NOTE:Be careful not to damage the transfer front bearing type T oil seal and transfer front bearing retainer sub-assembly contact surfaces.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver and hammer, remove the transfer front bearing type T oil seal.
- REMOVE TRANSFER LOW PLANETARY GEAR ASSEMBLY
- REMOVE TRANSFER CASE PLUG
- REMOVE TRANSFER LOW PLANETARY RING GEAR
- REMOVE TRANSFER LOW PLANETARY GEAR SPLINE PIECE

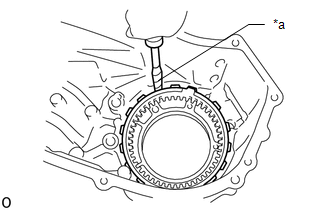

- Using a screwdriver, remove the transfer low planetary gear shaft snap ring.TEXT IN ILLUSTRATION
*a Protective Tape NOTE:Be careful not to damage the transfer low planetary gear assembly.
HINT:
Tape the screwdriver tip before use.
- Remove the transfer low planetary gear spline piece.

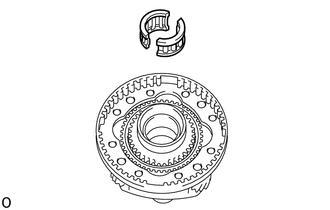

- Remove the transfer output shaft front needle roller bearing.
- Using a screwdriver, remove the transfer low planetary gear shaft snap ring.
- REMOVE TRANSFER INPUT SHAFT

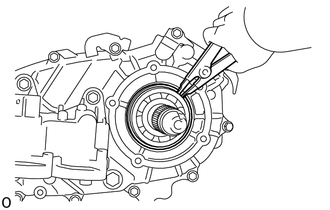

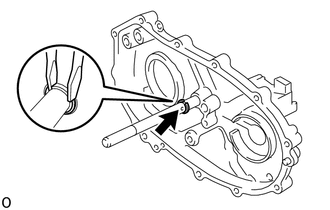

- Using a snap ring expander, remove the transfer input gear stopper shaft snap ring.

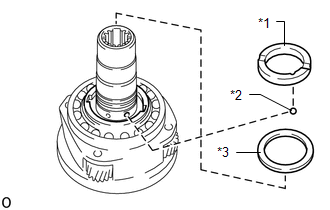

- Remove the transfer input gear stopper and transfer input gear stopper ball.TEXT IN ILLUSTRATION
*1 Transfer Input Gear Stopper *2 Transfer Input Gear Stopper Ball *3 Manual Transfer Planetary Carrier Washer - Remove the manual transfer planetary carrier washer.

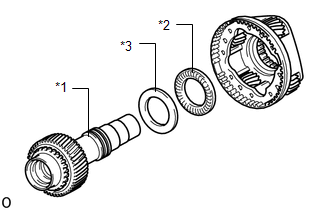

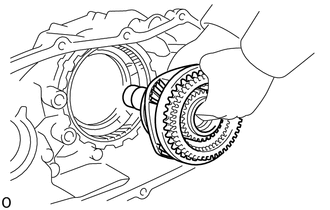

- Remove the transfer input shaft, transfer low planetary gear bearing and No. 1 transfer thrust bearing race.TEXT IN ILLUSTRATION
*1 Transfer Input Shaft *2 Transfer Low Planetary Gear Bearing *3 No. 1 Transfer Thrust Bearing Race
- Using a snap ring expander, remove the transfer input gear stopper shaft snap ring.
- REMOVE NO. 1 TRANSFER INPUT SHAFT SEAL RING
- REMOVE TRANSFER INPUT SHAFT BEARING

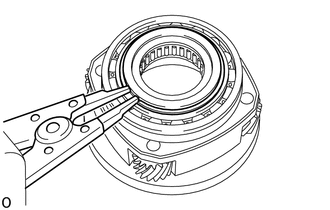

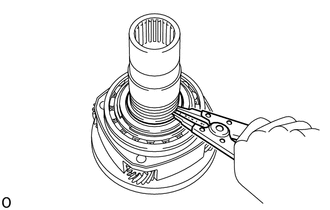

- Using a snap ring expander, remove the transfer input bearing shaft snap ring.
- Using SST, remove the transfer input shaft bearing.
- SST: 09555-55010
- SST: 09950-00030
- SST: 09950-60021
- 09951-00630
TEXT IN ILLUSTRATION*a Turn *b Hold NOTE:- Be careful not to damage the transfer low planetary gear assembly.
- Apply a lubricant to the threads and end of SST.
- Using a snap ring expander, remove the transfer input bearing shaft snap ring.
- REMOVE TRANSFER LOW PLANETARY GEAR BEARING
- REMOVE TRANSFER FRONT DRIVE SHIFT FORK SHAFT NOTE:
- When using a vise, place aluminum plates between the part and vise.
- When using a vise, do not overtighten it.

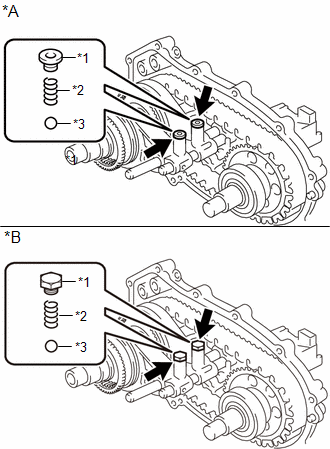

- Type A:

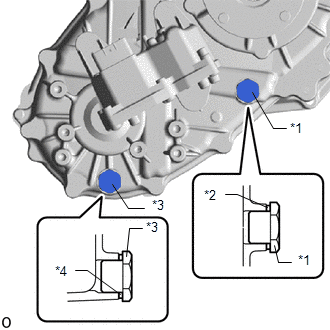

*A Type A *B Type B *1 Shift Detent Ball Spring Plug *2 Shift Detent Ball Compression Spring *3 Shift Detent Ball - Using a 6 mm hexagon wrench, remove the 2 shift detent ball spring plugs.
- Type B:
- Remove the 2 shift detent ball spring plugs.
- Using a magnet hand, remove the 2 shift detent ball compression springs and 2 shift detent balls.

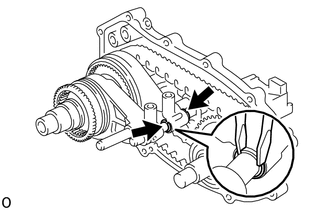

- Using 2 screwdrivers and a hammer, remove the 2 transfer gear shift fork shaft snap rings.
HINT:
Use a piece of cloth to prevent the transfer gear shift fork shaft snap rings from flying off.

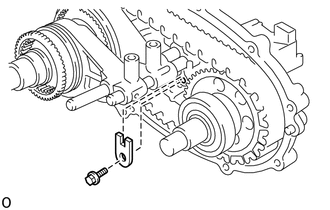

- Remove the bolt and transfer shift shaft stopper.

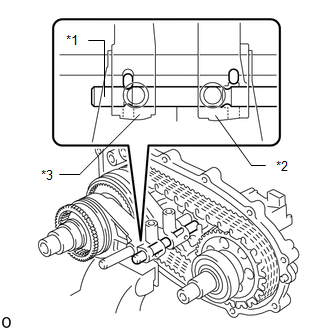

- To remove the transfer front drive shift fork shaft, shift the No. 1 transfer gear shift fork and No. 2 transfer gear shift fork to the positions shown in the illustration.TEXT IN ILLUSTRATION
*1 Transfer Front Drive Shift Fork Shaft *2 No. 1 Transfer Gear Shift Fork *3 No. 2 Transfer Gear Shift Fork - Remove the transfer front drive shift fork shaft.

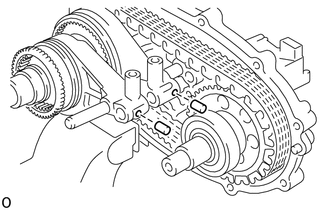

- Using a magnet hand, remove the 2 shift interlock pin or rollers.
- REMOVE REAR TRANSFER OUTPUT SHAFT, TRANSFER FRONT DRIVE CHAIN, TRANSFER DRIVEN SPROCKET NOTE:
- When using a vise, place aluminum plates between the part and vise.
- When using a vise, do not overtighten it.
- Using 2 screwdrivers and a hammer, remove the transfer gear shift fork shaft snap ring.
HINT:
- Use a piece of cloth to prevent the transfer gear shift fork shaft snap ring from flying off.
- Remove only the transfer gear shift fork shaft snap ring on the front side of the transfer shift actuator shaft.

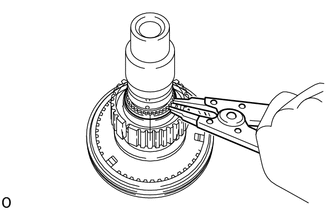

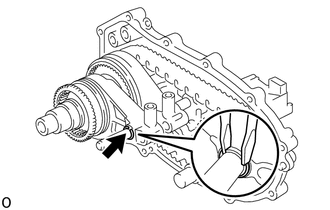

- Using a snap ring expander, remove the transfer output shaft - shaft snap ring.

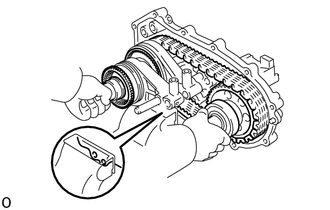

- Using a plastic-faced hammer, carefully tap the rear transfer case, and remove the transfer output shaft rear, transfer driven sprocket and transfer front drive chain with the No. 1 transfer gear shift fork and No. 2 transfer gear shift fork.

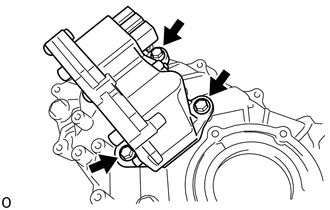

- REMOVE TRANSFER SHIFT ACTUATOR ASSEMBLY
- REMOVE TRANSFER DRIVEN SPROCKET BEARING
- for Front Side:

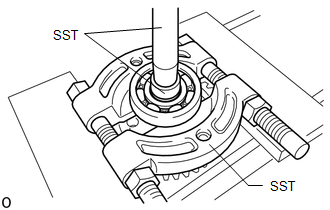

Using SST and a press, remove the transfer driven sprocket bearing.
- SST: 09555-55010
- SST: 09950-60011
- 09951-00210
- SST: 09950-70010
- 09951-07100
NOTE:Be careful not to drop or damage the driven sprocket.
- for Rear Side:
Using SST and a press, remove the transfer driven sprocket bearing.
- SST: 09555-55010
- SST: 09950-60011
- 09951-00270
- SST: 09950-70010
- 09951-07100
NOTE:Be careful not to drop or damage the driven sprocket.
- for Front Side:
- REMOVE TRANSFER CLUTCH HUB
- REMOVE TRANSFER DRIVE SPROCKET SUB-ASSEMBLY

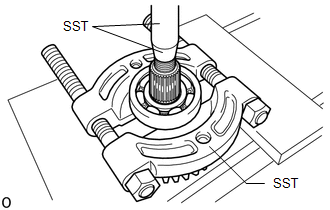

- Using SST and a press, remove the rear transfer output shaft radial ball bearing.
- SST: 09555-55010
NOTE:Be careful not to drop or damage the rear transfer output shaft.
- Remove the No. 1 transfer output shaft spacer.TEXT IN ILLUSTRATION
*1 No. 1 Transfer Output Shaft Spacer *2 Needle Roller Bearing *3 Transfer Drive Sprocket Sub-assembly - Remove the needle roller bearing.
- Remove the transfer drive sprocket sub-assembly.
- Using SST and a press, remove the rear transfer output shaft radial ball bearing.
- REMOVE TRANSFER SYNCHRONIZER RING SET (w/ A.D.D.)
- REMOVE FRONT DRIVE CLUTCH SLEEVE

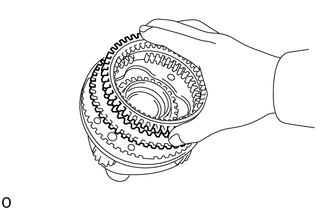

Remove the front drive clutch sleeve.

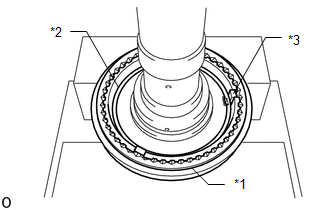

TEXT IN ILLUSTRATION*1 Front Drive Clutch Sleeve *2 Transfer Synchromesh Shifting Key Spring *3 No. 1 Synchromesh Shifting Key NOTE:w/ A.D.D.:
Be careful not to drop the 3 No. 1 synchromesh shifting keys.
- w/ A.D.D.:
Remove the 2 transfer synchromesh shifting key springs and 3 No. 1 synchromesh shifting keys.
- REMOVE TRANSFER DRIVE CLUTCH HUB
