Shift Motor Circuit [08/2019 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

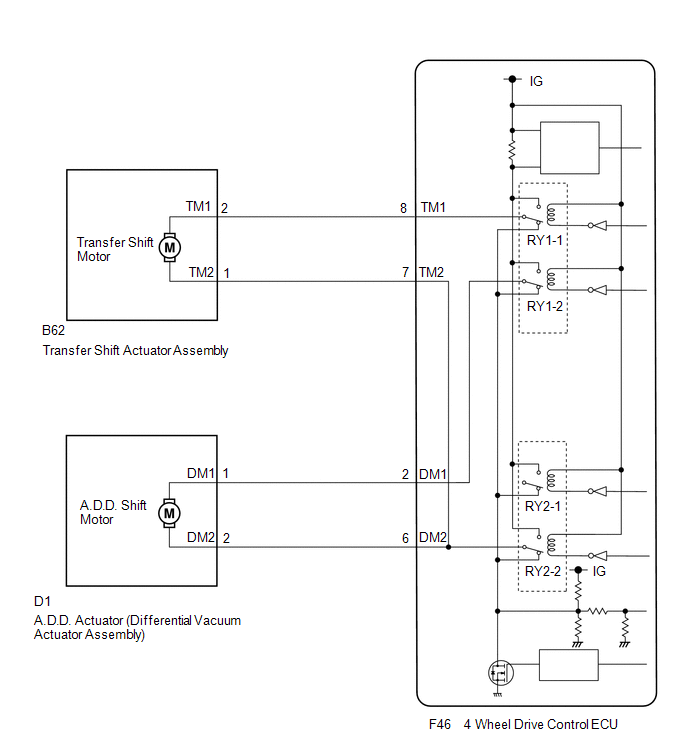

GTY854174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

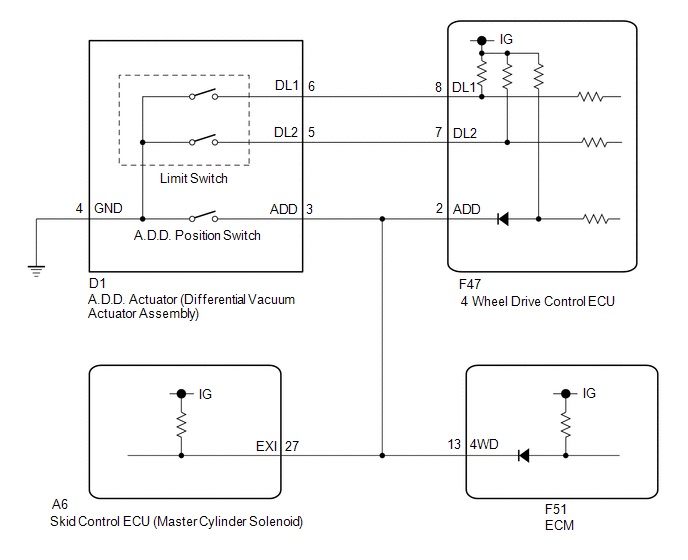

GTY927365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

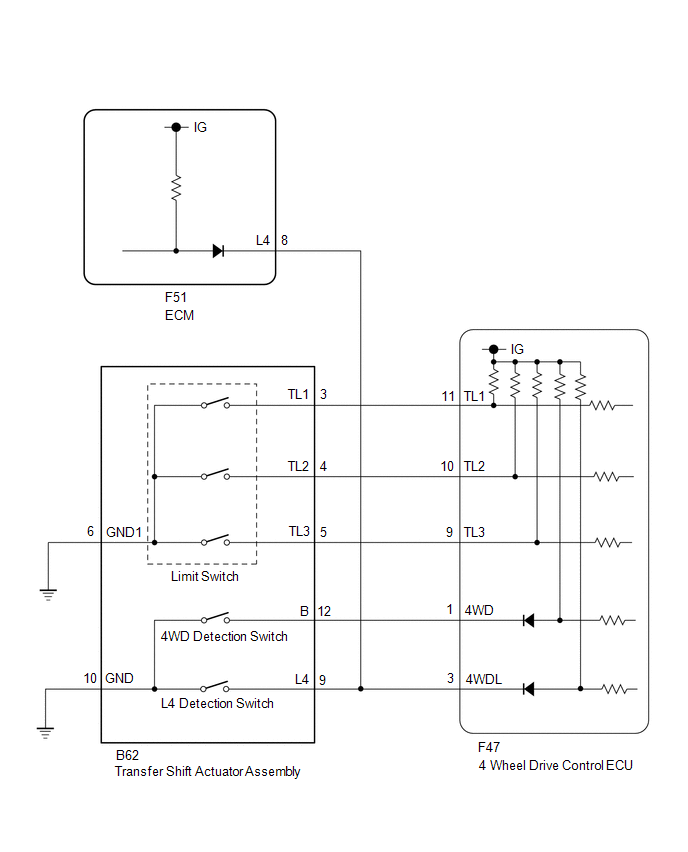

GTY921031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
