Terminals Of Ecu [08/2019 - ]
WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK 4 WHEEL DRIVE CONTROL ECU
*a Component with harness connected

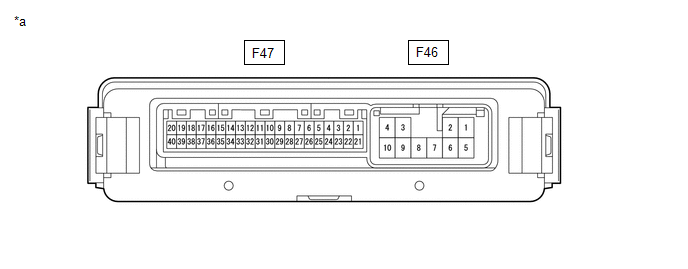

(4 Wheel Drive Control ECU)- - - Measure the resistance and voltage according to the value(s) in the table below.
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition F47-1 (4WD) - F46-10 (GND) L - W-B 4WD detection switch signal input Ignition switch ON
Transfer position 2WD10 to 14 V Ignition switch ON
Transfer position 4WDBelow 1.5 V F47-2 (ADD) - F46-10 (GND) SB - W-B A.D.D. position switch input Ignition switch ON
Transfer position 2WD (A.D.D. actuator Free)10 to 14 V Ignition switch ON
Transfer position 4WD (A.D.D. actuator Lock)Below 1.5 V F47-3 (4WDL) - F46-10 (GND) P - W-B L4 detection switch signal input Ignition switch ON
Transfer position not in L410 to 14 V Ignition switch ON
Transfer position L4Below 1.5 V F47-7 (DL2) - F46-10 (GND) SB - W-B A.D.D. actuator limit switch input Ignition switch ON
Transfer position 2WD (A.D.D. actuator Free)10 to 14 V Ignition switch ON
Transfer position 4WD (A.D.D. actuator Lock)Below 1.5 V F47-8 (DL1) - F46-10 (GND) LG - W-B A.D.D. actuator limit switch input Ignition switch ON
Transfer position 2WD (A.D.D. actuator Free)Below 1.5 V Ignition switch ON
Transfer position 4WD (A.D.D. actuator Lock)10 to 14 V F47-9 (TL3) - F46-10 (GND) R - W-B Transfer shift actuator limit switch input Ignition switch ON
TL3 terminal limit switch off (transfer H2 or L4)10 to 14 V Ignition switch ON
TL3 terminal limit switch on (transfer H4)Below 1.5 V F47-10 (TL2) - F46-10 (GND) L - W-B Transfer shift actuator limit switch input Ignition switch ON
TL2 terminal limit switch off (transfer H2 or H4)10 to 14 V Ignition switch ON
TL2 terminal limit switch on (transfer L4)Below 1.5 V F47-11 (TL1) - F46-10 (GND) G - W-B Transfer shift actuator limit switch input Ignition switch ON
TL1 terminal limit switch off (transfer H4 or L4)10 to 14 V Ignition switch ON
TL1 terminal limit switch on (transfer H2)Below 1.5 V F47-13 (LO) - F46-10 (GND) B - W-B Transfer position switch input Ignition switch ON
Transfer position switch H210 to 14 V Ignition switch ON
Transfer position switch H4Below 1.5 V Ignition switch ON
Transfer position switch L4Below 1.5 V F47-14 (2-4) - F46-10 (GND) W - W-B Transfer position switch input Ignition switch ON
Transfer position switch H2Below 1.5 V Ignition switch ON
Transfer position switch H4Below 1.5 V Ignition switch ON
Transfer position switch L410 to 14 V F47-20 (CANH) - F47-40 (CANL) G - W HIGH-level CAN bus wire - LOW-level CAN bus wire Ignition switch off
Cable disconnected from negative (-) battery terminal54 to 69 Ω F47-21 (+B) - F46-10 (GND) GR - W-B ECU power supply Always 11 to 14 V F46-2 (DM1) - F46-10 (GND) B - W-B A. D. D. shift motor output Ignition switch ON
Transfer position switch H4 to H2
(during A.D.D. actuator Lock to Free operation)Pulse generation
(see waveform 1)F46-4 (IG) - F46-10 (GND) SB - W-B ECU and actuator power supply Ignition switch ON 11 to 14 V F46-6 (DM2) - F46-10 (GND) Y - W-B A. D. D. shift motor output Ignition switch ON
Transfer position switch H2 to H4
(during A.D.D. actuator Free to Lock operation)Pulse generation
(see waveform 1)F46-7 (TM2) - F46-10 (GND) V - W-B Transfer shift motor output Ignition switch ON
Shift lever in N
Transfer position switch turned from H2 to H4 (switching from H2 to H4)
Transfer position switch turned from H4 to L4 (switching from H4 to L4)Pulse generation
(see waveform 2)F46-8 (TM1) - F46-10 (GND) P - W-B Transfer shift motor output Ignition switch ON
Shift lever in N
Transfer position switch turned from L4 to H4 (switching from L4 to H4)Pulse generation
(see waveform 2)F46-10 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω - Waveform 1
- When a gear is engaged and switching is performed
Item Content Tester Connection F46-2 (DM1) - F46-10 (GND) Tool Setting 5 V/DIV., 100 ms./DIV. Condition Ignition switch ON
Transfer position switch H4 to H2
(during A.D.D. actuator Lock to Free operation)Item Content Tester Connection F46-6 (DM2) - F46-10 (GND) Tool Setting 5 V/DIV., 100 ms./DIV. Condition Ignition switch ON
Transfer position switch H2 to H4
(during A.D.D. actuator Free to Lock operation) - When a gear is not engaged and switching is not performed
Item Content Tester Connection F46-2 (DM1) - F46-10 (GND) Tool Setting 5 V/DIV., 500 ms./DIV. Condition Ignition switch ON
Transfer position switch H4 to H2
(during A.D.D. actuator Lock to Free operation)Item Content Tester Connection F46-6 (DM2) - F46-10 (GND) Tool Setting 5 V/DIV., 500 ms./DIV. Condition Ignition switch ON
Transfer position switch H2 to H4
(during A.D.D. actuator Free to Lock operation)
- When a gear is engaged and switching is performed
- Waveform 2
- When a gear is engaged and switching is performed
Item Content Tester Connection F46-8 (TM1) - F46-10 (GND) Tool Setting 5 V/DIV., 100 ms./DIV. Condition Ignition switch ON
Shift lever in N
Transfer position switch turned from L4 to H4 (switching from L4 to H4)Item Content Tester Connection F46-7 (TM2) - F46-10 (GND) Tool Setting 5 V/DIV., 100 ms./DIV. Condition Ignition switch ON
Shift lever in N
Transfer position switch turned from H2 to H4 (switching from H2 to H4)
Transfer position switch turned from H4 to L4 (switching from H4 to L4) - When a gear is not engaged and switching is not performed
Item Content Tester Connection F46-8 (TM1) - F46-10 (GND) Tool Setting 5 V/DIV., 1 s./DIV. Condition Ignition switch ON
Shift lever in N
Transfer position switch turned from L4 to H4 (switching from L4 to H4)Item Content Tester Connection F46-7 (TM2) - F46-10 (GND) Tool Setting 5 V/DIV., 1 s./DIV. Condition Ignition switch ON
Shift lever in N
Transfer position switch turned from H2 to H4 (switching from H2 to H4)
Transfer position switch turned from H4 to L4 (switching from H4 to L4)
- When a gear is engaged and switching is performed
- Measure the resistance and voltage according to the value(s) in the table below.
