Parts Location [08/2019 - ]: Illustration

WARNING: This page is about a different car, the 2024 Toyota 4Runner, 2023 Toyota 4Runner, 2022 Toyota 4Runner, 2021 Toyota 4Runner, and 2020 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

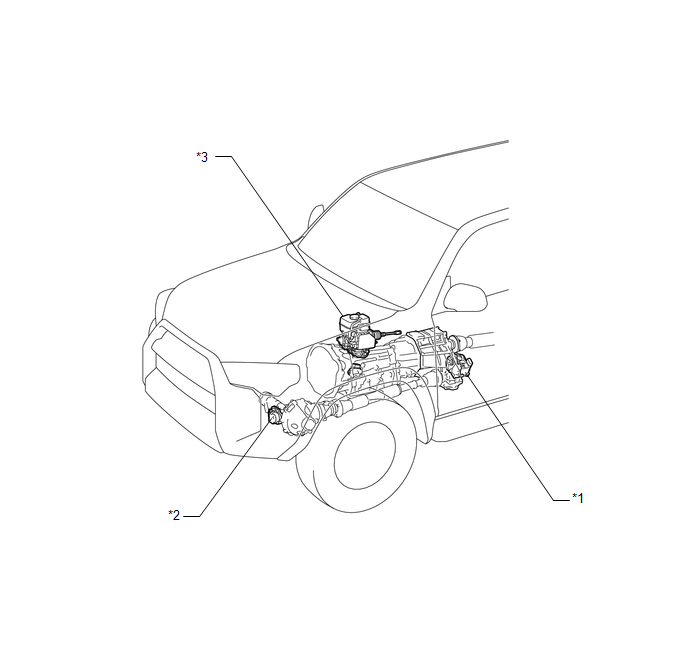

Fig 1: Touch Select 2-4 And High-Low System Parts Location (1 Of 2) [08/2019 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSFER SHIFT ACTUATOR ASSEMBLY - TRANSFER SHIFT MOTOR - LIMIT SWITCH - 4WD DETECTION SWITCH - L4 DETECTION SWITCH	*2	A.D.D. ACTUATOR (DIFFERENTIAL VACUUM ACTUATOR ASSEMBLY) - A.D.D. SHIFT MOTOR - LIMIT SWITCH - A.D.D. POSITION SWITCH
*3	SKID CONTROL ECU (MASTER CYLINDER SOLENOID)	-	-

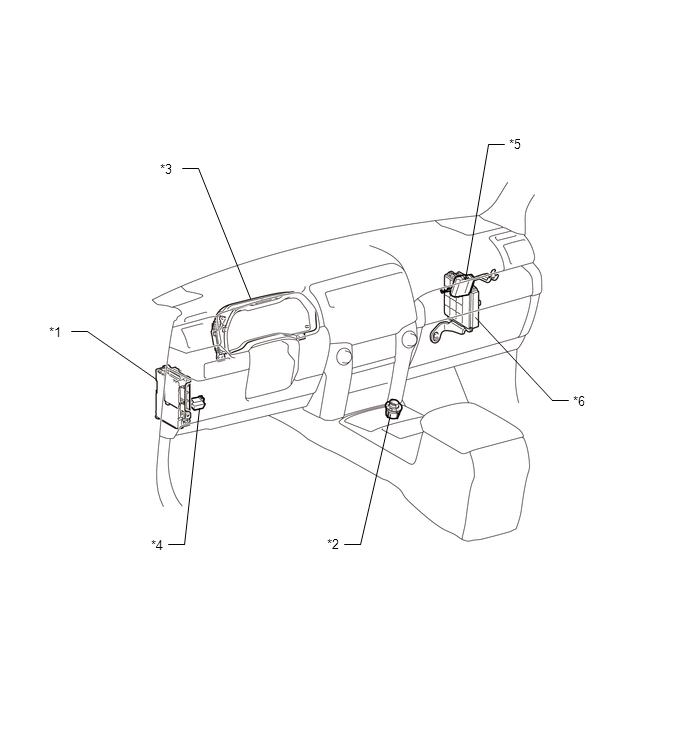

Fig 1: Touch Select 2-4 And High-Low System Parts Location (2 Of 2 [08/2019 - ])

*1	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ECU-B NO. 3 FUSE - 4WD FUSE	*2	TRANSFER POSITION SWITCH
*3	COMBINATION METER ASSEMBLY	*4	DLC3
*5	4 WHEEL DRIVE CONTROL ECU	*6	ECM
